Product information

Description

General description

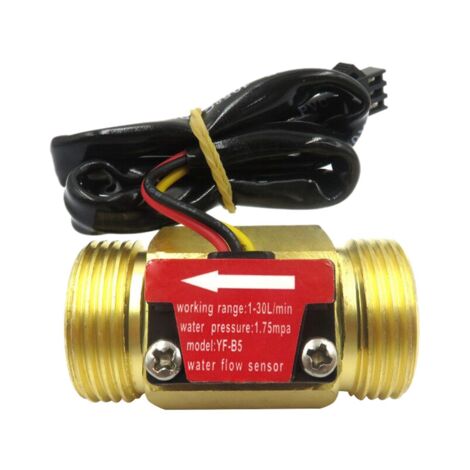

Lightweight and compact, the B5 DN20 Water Flow Sensor Switch is designed for easy installation. It features a copper impeller shaft and a durable liner, ensuring reliable performance without leakage due to its well-sealed upper and lower power structure. This sensor is suitable for various applications, including water heaters and water meters.

Technical specifications

Flow Rate: 1-30 L/min

Flow Pulse: F=6.6*Q ± 3%

Working Voltage: DC3.5V - 18V

Working Current: 15mA

Suffering Pressure: Max 1.5Mpa

Working Temperature: 0℃ - +80℃

Min Insulation Resistance: 100M Ohm

Output Pulse Duty Cycle: 50% +/- 10%

Max Output Pulse Voltage: DC4.7V (input voltage DC5V)

Min Output Pulse Voltage: Less than DC0.5V (input voltage DC5V)

Sensor Type: Hall effect sensor, Digital Output

Wire Connection: Terminal (Red): "+", Terminal (Black): Vout "-", Terminal (Yellow): signal output NPN signal pulse

Connector: Housing SM2.54-3P

Size: 50x26mm

Compatibility and accessories

Thread Connection: G3/4

Outer Diameter: 2.58cm

Mounting Position: Horizontal & Vertical

Other information

Package Contents: 1 * Flow Sensor

Note: Light reflection and different displays may cause the color of the item in the picture to differ slightly from the actual product.

The measurement allowed error is +/- 1-3cm.

Features

Brand
TLILY
Material
Copper
Pcs per pack
1 .
ManoMano Reference
ME93521229
MMID
804981128503

-B5 DN20 Water Flow Sensor Switch DC5-18V 1-30L/min Meter
