Bathroom 2 Dial 2 Way Round Concealed Thermostatic Valve - Shower Slim Head & Handset

Buying for your business?

Pro Price: -3% on this product

Create a Pro account

Sold by NesHome

Product information

Description

General description

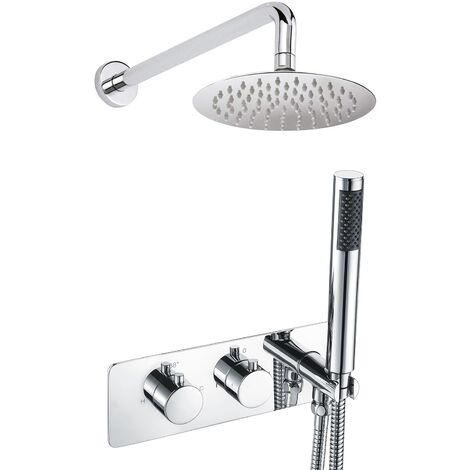

This Concealed Thermostatic Valve is designed to enhance any modern bathroom suite, providing thermostatic showering through two user-friendly controls for temperature and flow. It includes a slim shower head and handset, ensuring a simple and elegant showering experience.

Technical specifications

Left dial: Temperature control

Middle dial: Controls water flow

High-quality design with chrome finish

Manufactured from highly durable brass

Hot supply temperature: 55-65ºC

Cold supply temperature: 5-25ºC

Maximum static pressure: 10 bar

Built-in non-return valves to prevent backflow

Filters to protect the thermostatic mechanism

UK standard size fitting

Water flow rates: 0.1 Bar: 6.5 L/min, 0.5 Bar: 9.7 L/min, 1 Bar: 14 L/min, 1.5 Bar: 17.5 L/min, 2 Bar: 20.5 L/min, 3 Bar: 27 L/min

Shower head dimensions: 200mm x 4mm

Flow pressure, hot & cold: 0.5-5 bar

Compatibility and accessories

Suitable for the following water systems: Combi-boilers, Gravity fed systems, MegaFlow systems, Pumped systems, Un-vented systems, Pressurised cylinder systems

Package contents: 1 x Thermostatic valve, 1 x Shower handset, 1 x Bracket, 1 x Shower head, 1 x Shower hose, 1 x Installation guide

Installation

Wall or ceiling mounted

Easy to clean rubber nozzles

Features

Brand
NES HOME
Colour
Grey
Material
Brass
Intended use of the tap
Shower
Hand shower included
Yes
Shape
Rounded
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Pcs per pack
1
Concealed tap
Yes
Wall-mounted tap
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Single-lever mixer
Installation type
With stand
ManoMano Reference
ME51302259
MMID
221826349116
Product code
RV78+RS01+RS2020
EAN
7427009354966
