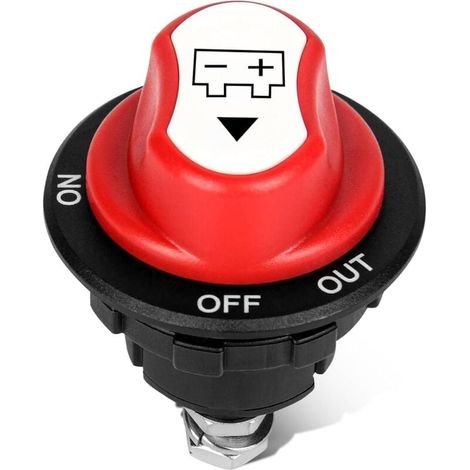

Battery Isolator Switch 12V 100A Max 24V ON-OFF-OUT 3 Position Battery Circuit Breaker 12V Car Battery Cut Off Switch For Marine Boat Motorhome
You may also like
Compare with similar items
Product information
Description
HIGH SAFETY: This 12V 100A battery isolator switch can safely disconnect the vehicle battery to eliminate all power to the battery when the vehicle or boat is not in use.
Sturdy and High Quality: This 12V car battery switch is made of high-quality ABS and metal materials, sturdy and durable, with a long service life. 3 switch positions control the power, and the copper binding posts at the bottom prevent the terminals from shorting.
Easy to Use: Our 12V battery breaker is designed with 3 switch positions ON-OFF-OUT. Switch to ON = power on, switch to OFF = power off. The cover on the top of the battery switch can be removed after being turned over, making it safer and better protecting adults or children. Provides a simple and economical way to separate batteries
Specifications: The battery isolation switch provides a continuous current of 100A and an intermittent current of 150A rated at maximum 24V DC to isolate and protect electrical systems.
Wide Application: Our battery isolation switch is widely used in 12V-24V vehicles, boats, yachts, ships, RVs, buses, caravans, motorcycles, etc.
Size: about 55mm * 45mm
Terminal diameter 6mm
Installation diameter: 29mm
Rated current: 100A
Working voltage: 12-24V
Note: The data are all manually measured, please allow an error of 1-3cm due to differences in light and display, there may be some color differences, please refer to the actual item received.
Features
- BrandWOIYIC
- Length55 mm
- Width45 mm
- Terminal lug adapter onlyYes
- ManoMano ReferenceME96135189
