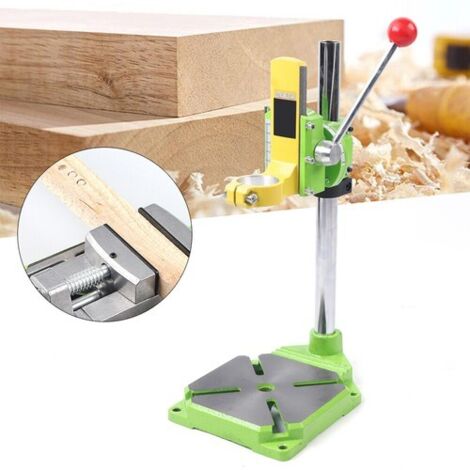

Bench Clamp Drill Press Stand Tool Workbench & Vice For Drilling Holder Bracket

Description

With its sturdy construction, flexibility, and convenient design, this hand drill stand will be a great tool for your drilling work. The adjustable clamp diameter is compatible with a wide range of hand drills, making installation easier. High-quality materials, 90° angle adjustment, high-precision scale, and thick base design provide you with a precise, flexible, and stable use experience, making your tool operation more professional and easier.

Key Features

Build to Last: The plastic, cast aluminum, cast iron, steel, and the plastic spraying process give the product high hardness, a strong structure, excellent rust resistance, good appearance, and a long service life.

Flexible Design: The 90° clamping head allows you to use this product for both vertical and horizontal or other angle drilling and polishing, greatly enhancing practicality and operational flexibility.

Wide Compatibility: The clamp is adjustable(1.5-1.69 inches in diameter) and can be taped in place when the drill (not included) is loose, so it can be used with a wide range of drills to meet your various needs.

Thoughtful Design: The dovetail guide design and copper plug fine adjustment design can be used to assist in guiding and adjusting the direction of downward pressure, enabling you to easily implement fine-tuning, and improve work efficiency.

Reliable Structure: The heavy-duty cast iron base comes with holes for table mounting, so you can easily secure it to further ensure stability. In addition, the base is designed with expansion slots for mounting a vise or mold, and the mold and vise can slide over the slots to change their position, making your work more flexible.

High Precision: The stroke and angle scales allow you to accurately measure and set the depth and angle of the borehole, greatly improving work accuracy and borehole consistency.

Easy to Clean: With a smooth surface and a simple structure, you can easily wipe it clean with a damp cloth.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Height Fixing Holder: With it, you can fix the clamp to the working height or length of the drill bit, providing further stability.

Comfortable Handle: The handle comes with a round grip point that fits your hands very well and is comfortable and easy to use.

Fixed Plastic Bushes: The three different types of bushes can protect the drill from damage.

Application

The product is suitable for hardware processing, mold making, electronics manufacturing, scientific experimentation, jewelers, woodworkers, machinists, hobbyists, homes, workshops, arts and crafts, etc.

How to Install

1. Mount the shaft on the base, install the spindle and tighten the screws.
2. Fix the height of the mounting bracket, then install the bracket and tighten the screws.
3. Insert the handle into the installation hole.
4. Install the appropriate reduction bushing to the drill (not included).
5. Install the drill and tighten the screws.
6. The clamp can be mounted on the base as required for the job.

Specifications

Color: Green

Material: Cast Aluminum, Cast Iron, Steel, Plastic

Process: Plastic Spraying

Mount Type: Table Standing

Assembly Required: Yes

Model: 6117

Clamp Diameter: 38-43mm/1.5-1.69in

Work Stroke: Within 6cm/2.36in

Product Overall Size: 16*22*40cm/6.3*8.66*15.75in

Rotation Angle: 0-90°

Main Rod Size(D*H): 2.5*40cm/0.98*15.75in

Package Size: 42*19*10cm/16.54*7.48*3.94in

Gross Weight: 3.4kg/7.5lbs

Net Weight: 3.23kg/7.12lbs

Package Included

1* Bench Drill Stand

3* Plastic Bushes

1* English Manual

Other Needed Accessories

Notes

1. Please check the size carefully before ordering.
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
