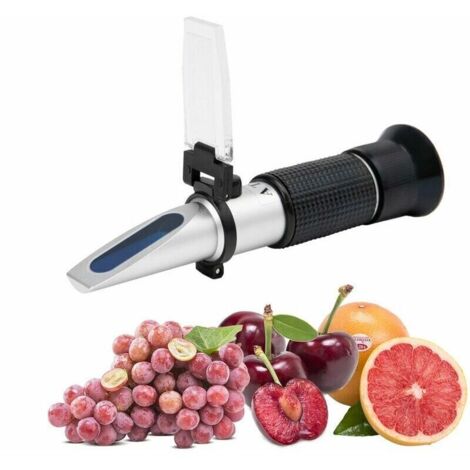

Brix Refractometer 0-40% Alcohol 0-25% - Portable device for measuring the sugar content of wine, beer and fruit

Refractometer measuring range: Brix: 0-40% Alcohol: 0-25%
Calibration: Zero calibration with water at 20°C, automatic temperature compensation between 10°C and 30°C (ATC)
Purpose: The refractometer is a high-quality optical testing instrument that can quickly and easily measure the sugar content of various liquids (fruits, vegetables, wine, beer, etc.) to deduce the potential alcohol content.
Easy to use: Place 2 or 3 drops of the sample on the main prism, close the plate, and look through the viewing window to read the Brix value.
Advantages: Fast detection speed, accurate and easy to read, easy to carry. (If you need a manual in French, please contact us.)
Product Description Specification Material: ABS
Color: Black
Product Name: Refractometer
Measuring Range: Brix: 0-40% Alcohol: 0-25%
Minimum Scale: 0.2%
Measuring Accuracy: Brix ± 0.2% (10℃ to 30℃)
Temperature Correction Range: 10℃ - 30℃ (ATC)
Suitable for: Fruits, vegetables, beer, alcohol, fruit juice, sugar, etc.
Caution: The instrument must be zero-calibrated before use. Calibration:
First method:
Place a few drops of distilled water on the detection prism and turn the zero adjustment screw to set the separation line to the 0% position on the scale.
Second method: (only for determining sugar content)
Use a temperature correction table, then add (or subtract) the temperature correction value from the reading at room temperature to obtain an accurate value.
Instructions: 1. Open the cover and thoroughly wipe the detection prism with a soft cloth.
2. Take 2 to 3 drops of the solution to be tested, place them on the prism, close the cover to prevent bubbles, and spread the solution over the prism surface.
3. Direct the instrument's light-inlet plate toward the light source or a bright location, look through the eyepiece, and turn the eyepiece adjustment knob until the blue-white boundary is clear. The value on the separation line scale corresponds to the concentration of the solution.



Clean the prism before and after use.
Application: fruits, vegetables, beer, alcohol, fruit juice, soft sugar, etc.
