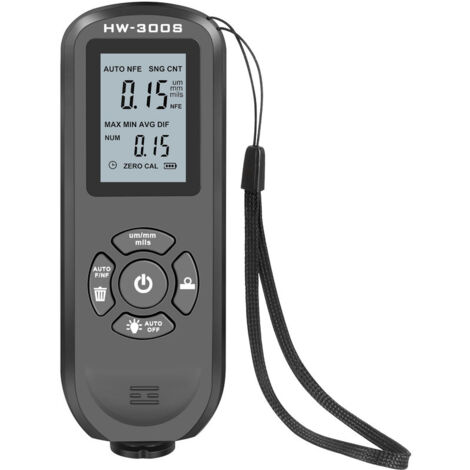

Auto Paint Tester Coating Thickness Gauge with Digital LCD Backlight Display Vertical Screen Black

~~£30.29~~

Of which environmental contribution £0.10 including VAT.

Sold by AGUOHC

Product information

Description

General description

This Auto Paint Tester Coating Thickness Gauge features built-in magnetic induction and a dual vortex principle probe, allowing it to automatically identify the measured metal substrate. Simply place it on the surface to calculate the coating thickness. It is designed for measuring the thickness of non-metallic coatings, such as paint and film, on metal substrates quickly, non-destructively, and accurately. The device is particularly useful for assessing vehicle surface paint and other coatings.

Technical specifications

Material: ABS

Color: Orange, Black (optional)

Screen Orientation: Horizontal, Vertical (optional)

Measuring Range: 0 ~ 2000um

Accuracy: (3%+1um)

Resolution: 0um ~ 99.9um (0.1um), 100um ~ 999um (1um), > 1000um (0.01mm)

Zero Calibration: Supported

Statistics: Average, Minimum, Maximum, Count

Units: um, mm, mils

Minimum Convex Radian: 5mm

Minimum Concave Radian: 25mm

Minimum Measured Area: Diameter 20mm

Minimum Substrate Thickness: 0.2mm

Maximum Measuring Speed: 2 Readings Per Second

Power Supply: 2 x 1.5V 7-cell batteries (not included)

Operating Environment Temperature: 0 ~ 50°C, 20 ~ 90% RH (non-condensing)

Storage Environment Temperature: -10 ~ 60°C, 20 ~ 90% RH (non-condensing)

Size: 113mm x 53mm x 24mm

Installation

Step 1: Prepare the parts to be tested.

Step 2: Stay at least 2cm away from any metal object, then press the switch key to turn on the device.

Step 3: Zero the instrument using the "zero calibration" feature before testing.

Step 4: Place the probe vertically on the surface until a drop sound is heard, then lift it at least 2cm away to perform the next measurement.

Usage

Ensure the tester is perpendicular to the test surface at a 90-degree angle when measuring paint thickness.

If the automatic shutdown function is enabled, the device will turn off after 3 minutes of inactivity.

Features

Brand
LINGHHANG
Length
113 mm
Width
53 mm
Height
24 mm
Weight
150 g
