Product information

Description

General description

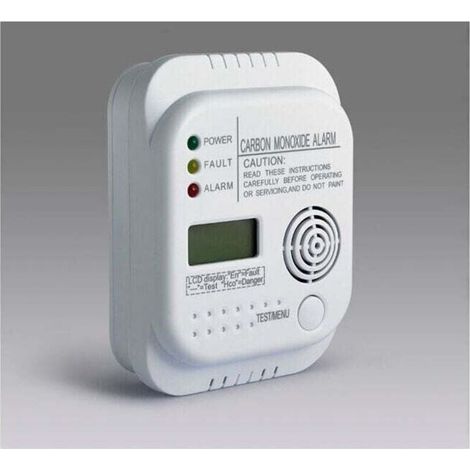

The LM 201A carbon monoxide detector is a certified and tested device according to EN 50291. It offers continuous monitoring of CO concentration, with a clear display of temperature and battery status. Thanks to its early warning system, it alerts users in the event of dangerous carbon monoxide concentrations.

Technical specifications

Detection Gas: Carbon monoxide

Detection Method: Electrochemical sensor

Operating Voltage: 4.5 V DC

Working Environment: Temperature 0℃ to 45℃

Relative Humidity: 0-90% RH

Standby Current: 80 ± 10 µA

Alarm Current: 45 ~ 75 mA

Alarm Sound Level: > 85 dB (distance 1 m)

Power Indicator: Flashes once every 45 seconds

Fault Detection: Every 2 minutes

Compatibility and accessories

Included in delivery: 1 x CO Detector type LM 201A

3 x 1.5V DC type AA batteries

Installation

For optimal effectiveness, install the carbon monoxide detector in a well-ventilated area, away from heat or steam sources, and at a distance of at least 1.5 m from the floor.

Usage

The detector operates autonomously and emits an audible signal if dangerous levels of carbon monoxide are detected. In case of a false alarm, the sound can be silenced for 5 minutes.

Features

Brand
SNQ
Length
10 mm
Width
10 mm
Height
10 mm
Weight
100 g

Carbon Monoxide Detector, Battery Powered, Gas Detector with Display and Temperature Indicator
