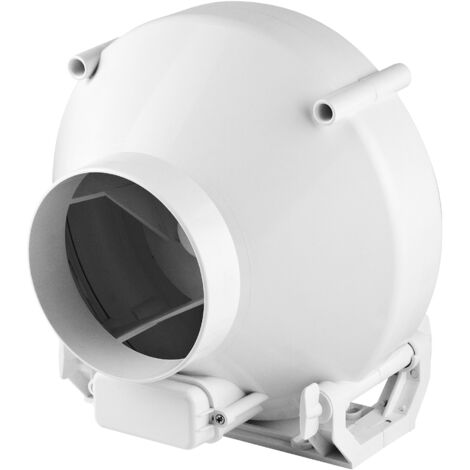

Centrifugal Inline Fan WP125

Name: Centrifugal Inline Fan WP125
Brand: AWENTA
SKU: WP125
Price: 154.89 GBP
Availability: InStock

Product information

Description

General description

The Centrifugal Inline Fan WP125 is designed for efficient ventilation in various settings. It features a robust ABS housing and is equipped with ball bearings for enhanced durability. This fan operates at three different speed levels, making it versatile for different airflow requirements.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing material: ABS

Bearing type: Ball bearings

Nominal size: 125 mm

Speed levels: 3

Motor wattage: 53 / 55 / 61 W

Revolutions per minute: 1700 / 2200 / 2550

Airflow rate: 220 / 295 / 340 m³/h

Sound pressure level Lp-3m: 44 / 51 / 55 dB(A)

Total pressure Pmax.: 310 / 345 / 370 Pa

Max. operating temperature: +40°C

IP code: IP44

Diameter of duct connectors: 125 mm

Diameter of housing: 256 mm

Total length: 208 mm

Weight: 2.5 kg

Installation

Mounting options: Vertical, horizontal

Features

Brand
AWENTA
Height
20.8 cm
Material
Plastic
Weight
2500 g
Power
53 W
