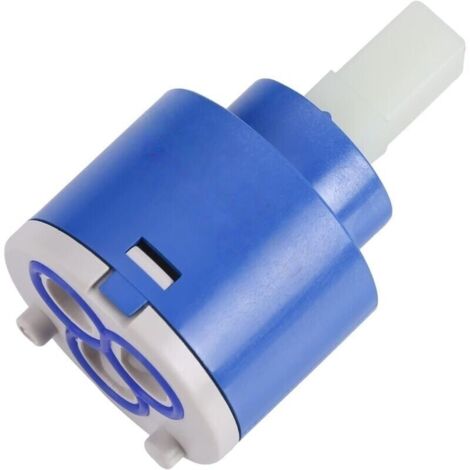

Ceramic cartridge, 40MM Tap cartridge suitable for kitchen taps and bathroom taps
You may also like
Compare with similar items
Product information
Description
The 40mm ceramic cartridge is made of high-quality materials. The cartridge's casing uses high-quality materials that are resistant to high temperatures and aging. It has good sealing performance and no water leakage.
Precision Filter - It features three-layer filters. The three-layer filter can effectively filter impurities from tap water and reduce the noise of the water flow.
At the same time, it helps conserve water resources.The diameter of the cartridge tap is 40 mm.
This cartridge tap is suitable for kitchen, bathroom, and shower taps.
Product Structure:
- Long service life, no dripping
- Precision filter - The three-layer filter can effectively filter impurities in the tap water and reduce the noise of the water flow.
- Ceramic cartridge, using high-quality materials
- High temperature resistance - Anti-aging
- Reduces water waste while ensuring even water usage.
Technical Specifications
- Recommended Torque: 10-12 Nm Max.
- Opening Angle: 25 °.
- Rotation angle: 90°
- Maximum static pressure: 12 bar
- Recommended pressure: 1.0-1.5 bar
- Pressure: 28-35 bar.
- Recommended operating temperature: ≤ 65 °C.
- Constant temperature: < 2.1 °C
- Fidelity < 3.5°C
- Sensitivity ≥ 12 mm (r ≥ 69 mm)
- Noise level: 22.40-27.00 dB
- Life cycle EN817 70,000 cycles
- Flow rate at 3 bar (D - restrictor) Mixer 20.20 l/min.
- Cold red position 19.30 l/min
- Close 0.19-2.25 Nm Turn left
- Right 0.22-0.33 Nm.
Features
- BrandTEHTUY
- Height10 mm
- MaterialCeramic
- ColourBlack
- Pcs per pack1 .
