CHAMFER MACHINE SIGMA SIMPLE BEVEL TILING BEVEL 36A5D + ANGLE GRINDER CAT DX31B

Name: CHAMFER MACHINE SIGMA SIMPLE BEVEL TILING BEVEL 36A5D + ANGLE GRINDER CAT DX31B
Brand: SIGMA
SKU: 7427048698540
Price: 749.4 GBP
Availability: InStock

~~£1,049.16~~

Sold by GLS72

Product information

Description

General description

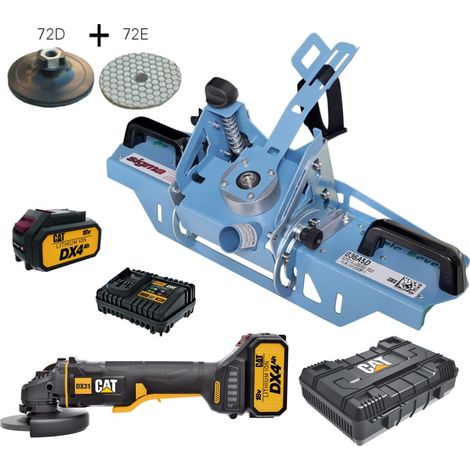

The CHAMFER MACHINE SIGMA SIMPLE BEVEL TILING BEVEL 36A5D is designed for precise beveling and edge finishing on various materials including gres porcelain tiles, marble, granite, and glass. This kit includes the Sigma 36A5D chamfer machine and the Cat DX31B cordless angle grinder, making it a versatile tool for both professionals and DIY enthusiasts.

Technical specifications

Chamfer width: 1 to 18 mm on gres porcelain material

Bevel width: 4 to 18 mm

Bevel depth: 0 to 12 mm (0 to 6 mm on porcelain gres)

Adjustable angle: 22° to 90°

Disk capacity max: 100 mm (4")

Spindle thread: M14

Voltage of angle grinder: 18V

Revolutions per minute of angle grinder: 8500/min

Disco size of angle grinder: 125 mm

Machine weight of angle grinder: 1.85 kg

Compatibility and accessories

Compatible with grinding wheels art. 72E0050, 72E0200, 72E0800, and 72E1500

Includes 2x Cat DXB4 Lithium battery 4.0Ah

Includes 1x Cat DXC4 Battery charger 4A (60 minutes charging time for 4.0Ah battery)

Includes 1x Cat Modular case

Accessories for angle grinder: 1 auxiliary handle with service key, 1 cutting protection cap, 1 grinding protection cap

Installation

Ensure the angle grinder is compatible and securely attached to the chamfer machine.

Adjust the safety guard and auxiliary handle as needed for comfort and safety.

Usage

Use the chamfer machine for finishing and polishing lateral edges of tiles cut with a blade.

Perform multiple passes at different angles to achieve the desired bullnose finish.

Utilize the adjustable angle feature for precise beveling on various tile edges.

Features

Brand
SIGMA
Bore diameter
22.2 mm
Disc / blade diameter
125 mm
Material
Metal
Weight
1.8 kg
Voltage
18 V
Type of angle grinder
Angle grinder
Rotational speed
8500 rpm
ManoMano Reference
ME55062341
MMID
720128552959
Product code
7427048698540
EAN
7427048698540
