Diesel Air Heater 12V 2KW Tank Vent Duct Thermostat For Caravan Motorhome Truck

Application for:

motorhomes, campervans, caravans (also known as travel trailers and camper trailers), fifth-wheel trailers, popup campers and truck campers, Small Truck, Big Truck, Light Truck, Heavy Truck, Pickup, Van,Bus,Car,SUV, Boat, Forklift, Electric Tricycle, Engineering Vehicle, Yacht

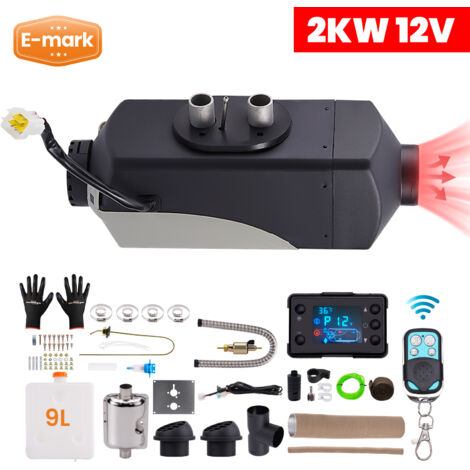

Packag included:

1 x Parking Heater
1 x Fuel Tank 9L (No need to punch hole)
1 x Air Outlet Pipe
1 x Intake Pipe
1 x Exhaust Pipe
1 x LCD Switch
1 x Remote Controller (batteries included)
1 x Silencer
1 x Power Harness
2 x Wind Head
1 x Tee Connector
1 x Fuel Pump
1 x Fuel Hose
1 x Fuel Extractor
1 x Fuel Filter
1 x Air Filter
1 x Fixed Plate
1 x Fuel Pump Clamp
1 x Exhaust Wrap
1 x Glove
1 x Fixed Accessories Set as Picture Shows
1 x Manual

Specifications:

Car Air Conditioning Type: Heating
Fuel Type: Diesel Only
Switch Type: LCD Control Panel
Heating Power: 1KW-2KW Adjustable
Rated Voltage: 12V
Fuel Consumption(L/H): 0.16-0.24
Working Temperature of the Heater: -40℃~+50℃
Working Temperature of the Oil pump: -40℃~+40℃
Item Size: 34x11.5x11.5cm
Fuel Tank: 40x31.5x8.5cm, ≈9L
Certification: CE/UKCA/RCM/Emark
Package Size(cm):48*45*27CM
Package Gross Weight(KG):6.6 KG

Features:

1. WIDE RANGE OF APPLICATIONS
The diesel air heater can be used for truck, boat, car trailer, motorhomes, touring car, camper vans, caravans and so on.
2. EASY TO OPERATE
Easy to install , remove and maintain. The vehicle can be preheated by the remote control to eliminate the frost on the windows.
3. DURABLE ALUMINUM BODY
The combustion chamber, the base and the heat-dissipating scale are all sand-blasted aluminum parts. It is integrally formed, with the heat dissipation fast and uniform.
4. FAST HEATING & LOW EMISSIONS
Volatile technology, the ceramic igniter heats the fuel to evaporate into a gas and burn it quickly and fully. Low emission, low fuel and power consumption, suitable for long running.
5. ENERGY SAVING
The optimized frequency conversion ECU can accurately control the injection frequency of the fuel pump and the intake air amount to extend the service life of the heater.
6. REDUCED NOISE
Effectively reduce noise through blower speed control, the speed of the fan is controlled linearly with the increasing power, and the metering fuel pump adopts an improved low frequency pulse with low vibration.
7. KEEP CONSTANT TEMPERATURE
The intelligent overheating sensor can prevent the heater from running dry, and the LCD dynamic display will clearly show the running state of the machine.

Important Installation Note:

1. The fixed backboard should be sealed and separated from vechicle sheet metal during installtion to avoid physical injury to the driver when the combustion gas flows in the driving cab from the gap.

2. The exhaust pipe length shall be 30cm at least.

3. The exhaust gas outlet sall be firmly placed in the empty space.

4. The exhaust pipe outlet shall not look at the driving direction.

(More installation details included in the instruction manual.)

Notice:

*Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.

*Professional installation is recommended

*For any needs please contact us.
