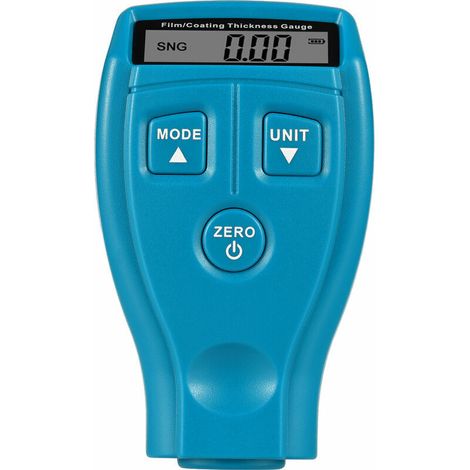

Coating thickness gauge, paint film gauge, automotive paint tester, battery-free paint thickness gauge, shipping

Features:
Basic Functions: It can quickly and accurately measure the thickness of non-metallic coatings (such as paint, film, etc.) on the surface of metallic substrates.
Dual Car/User Modes: You can measure the coating thickness of the substrate material for calibration. And the car mode can be used without calibration; it measures the coating thickness of 3 substrate materials (iron, aluminum, and zinc), suitable for measuring car thickness.
3 switchable measurement modes: single measurement (SNG), continuous measurement (CTN), and differential value measurement (DIF) are available, easily switched by pressing the MODE button.
3 calibration modes in user mode: including zero calibration, two-point calibration, and basic calibration.
Metric and imperial units of measurement: briefly press the UNIT button to switch between mm (metric) and mil (imperial).
Wide applications: it is widely used in the field of automotive manufacturing inspection, metal processing industry, chemical industry, commodity inspection, etc.

Specifications:
Material: ABS
Unit: mm, mil
Measuring range: 0 ~ 1.80 mm / 0 ~ 71.0 mil
Car mode resolution: 0.05 mm / 2 mil
User mode resolution: 0.01 mm / 1 mil
Measurement error: ±0.1 mm
Minimum substrate diameter: 50 mm
Minimum substrate thickness: 0.5 mm
Temperature range: 18 ~ 30 ℃
Operating humidity range: 10 ~ 80% RH
Calibration coating film: 0.05/0.10/0.25/0.50/1.00/2.00 mm
Power supply: 2 * 1.5V AAA batteries (NOT included)
Item size: 105 * 62 * 30.5 mm / 4.13 * 2.44 * 1.20 inches
Item weight: 57 g / 2.03 oz
Package weight: 109 g / 3.86 oz
Package size: 20 * 15.5 * 7.5 cm / 7.87 * 6.10 * 2.95 inches

Package list:
1 * Thickness gauge
6 * Calibration coating film
1 * Manual (English)
