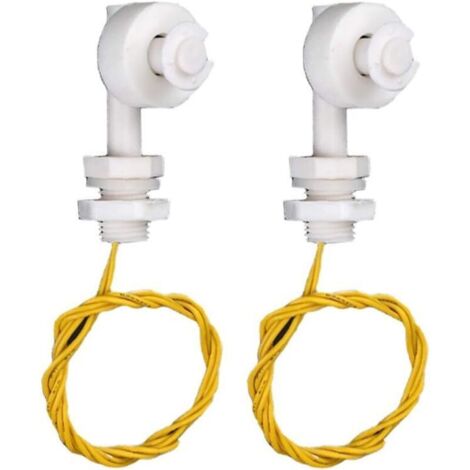

Compact liquid sensor for float switch, 400 mm cable length, connection for aquarium water meter, float switch, liquid controller, flow meter, automatic flow
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description
This compact liquid sensor is designed for use with a float switch, ideal for monitoring liquid levels in various tanks. It can activate an alarm or other devices depending on the detected liquid level. Its simple and lightweight design ensures high reliability and ease of use, without requiring an external power supply. It is also possible to convert it from normally open to normally closed by reversing the float.Technical Specifications
- Dimensions: approx. 54 x 25 mm
- Cable Length: 400 mm
- Color: white
- Capacity: 50 W
- Switching Voltage: 110 V DC
- Switching Current: 0.5 A
- Insulation Resistance: greater than 10 Ω
- Resistance: less than 100 mΩ
- Operating Temperature: -30 to +125 °C
- Operating Pressure: less than 0.6 MPa
Compatibility and Accessories
Water sensor only; other accessories shown in the image are not included.Other Information
- Contents: 2 water sensors
- Measurements are taken by hand, so the sizes shown may vary by 0 to 1 cm
- The color of the item may vary from the photo, depending on your computer's display and brightness settings
Features
- BrandTEHTUY
- ColourWhite
- Warranty1 year(s)
- Width25 mm
- MaterialCross-linked Polyethylene
- Weight100 g
- Voltage110 V
- ManoMano ReferenceME99021758
- MMID185850014859
- Product codeZSino-10139
- EAN6240449338690
