Product information

Description

General description

This kit includes 10 compact wire connectors made from high-quality flame-retardant modified nylon PA66. These connectors are designed for a long service life, offering resistance to corrosion, aging, and electric shock with a pressure rating of 4KV. They provide a practical solution for connecting multiple wires efficiently.

Technical specifications

Material: Modified nylon PA66

Pressure rating: 4KV

Wire compatibility: Solid wires 0.08-4mm² / 28-12AWG; Flexible wires 0.08-2.5mm² / 28-14AWG

Mounting screws included: 3 * 16 mm

Installation

Remove the wire sheath (9~10mm).

Push the orange clip upwards to 90°.

Insert the cable and turn off the switch.

Fix the connector using the included mounting screws.

Usage

Connect multiple lights to one switch using the 2 inputs and 4 outputs configuration.

Each terminal has a detection connection and can be reused.

Independent shrapnel allows for separate management of different wire diameters.

Test hole available on each connector surface for easy testing.

Other information

Red pressure lever (1 in 2 out): positive power supply

Blue pressure rod (1 in 2 out): negative power supply

Requires no maintenance and simplifies wiring tasks.

Features

Brand
TINOR
Colour
Blue
Material
Polyamide
Type of electrical installation
Surface mounted
Terminal block type
Electrical terminal

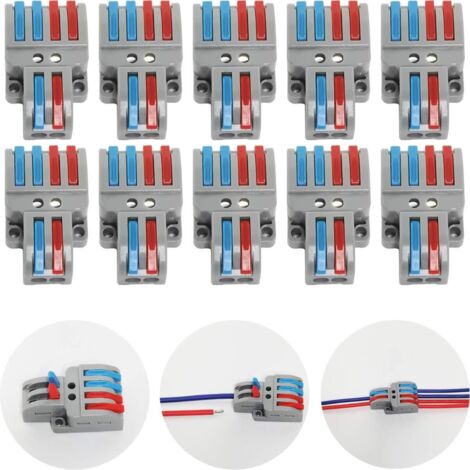

Connection Terminals, 10 Pcs Electrical Connector with Operating Lever, Compact Automatic Electrical Connection Terminal, 2 in 4 out, With Mounting Screws
