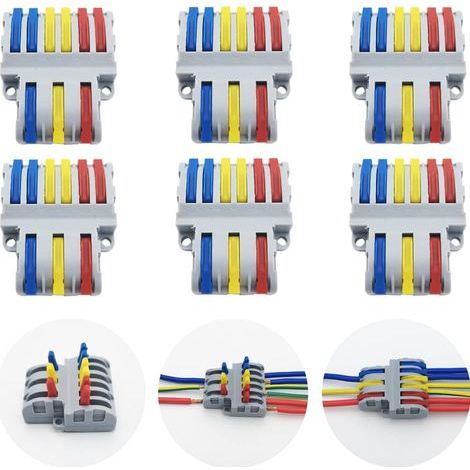

Connection Terminals, 6 Pcs Quick Electrical Connector, Compact Wire Connectors SPL-63 (3 in 6 out)
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Compare with similar items
Product information
Description
Specification ---- SPL-63 Multi-level Electrical Connector (3 in 6 out), rated voltage: 250V, rated current: 32A. Package: 6pcs.
Safe and Durable ---- The shell of the electrical connector is made of flame-retardant PA66 nylon, insulating, anti-corrosion and anti-aging. The conductor is designed with tinned copper which ensures high conductivity.
Wiring Range ---- Connection terminals are suitable for various cable strands: solid hard wire (BV) 0.08-4mm²/AGW28-12, multi-strand hard wire (BVR) 0.08-4mm²/AGW28-12, multi-soft wire (RV) 0.08-2.5mm²/AWG28-14. It is widely used in buildings and daily household wiring where space is limited for all required connections.
Screw Fixing ---- The terminal block can use M3 screw mounting hole, this product comes with mounting screws (3 x16mm). There are screw holes on both sides of the quick connector of the connectors, which is convenient for fixing the wiring, simple but effective.
Reusable ---- Each compact quick electrical connector can also be reused. If the wires need to be changed, you just need to lift the small lever, remove the wires and replace them.
Features
- BrandCSPARKV
- Pcs per pack6
- ColourTransparent
- Height10 mm
- Amperage32 A
- Width10 mm
- Length10 mm
- MaterialCopper
- Weight200 g
- Voltage250 V
- Terminal block typeJunction connector
- Terminal block useGeneral purpose
- ManoMano ReferenceME85508145
- MMID499227817848
- Product codeCPS-06165WMZ
- EAN9459710360200
