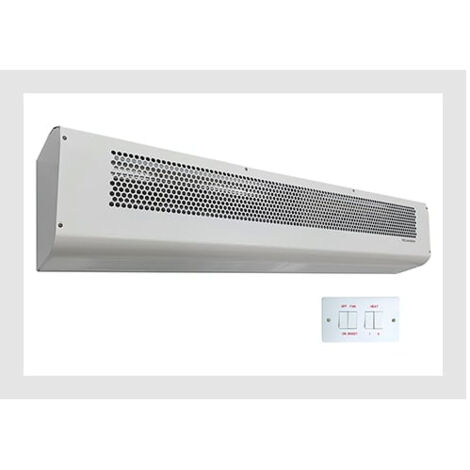

CONSORT Screenzone Commercial Extra Wide 9kW Air Curtain CA1509S

Screenzone extra-wide air curtains deliver a welcoming curtain of warmth for extra-tall and wide double doorways in shops, hotels, offices and other commercial premises. Available in 9kW, 12kW, 14kW, 15kW, 16kW and 18kW ratings. CA1309S offers single- or three-phase supply; CA1312S, CA15 and CA20 are three-phase only. Units can be suspended or wall-mounted and are finished in white. Supplied with HE8408 remote switch (two heat settings and two fan speeds); optional ACMC (Air Curtain Master Controller) and ACTS (Air Curtain Temperature Sensor) are available — ACTS must be used with ACMC. An energy-efficient brushless motor powers fan-only circulation and heated airflow, and multiple heaters can be controlled from one switch. Built-in automatic thermal cut-out and a safety monitoring feature report faults via the ACMC display or an LED indicator when ACMC is not used. Compatible with building management systems.

Extra-wide design creates a warm, draught-blocking curtain ideal for tall or wide double doorways in commercial settings.

Available in multiple power ratings: 9kW, 12kW, 14kW, 15kW, 16kW and 18kW.

Single- or three-phase supply available on CA1309S model.

Three-phase supply only on CA1312S, CA15 and CA20 models.

Flexible installation: suitable for suspended or wall-mounted mounting.

Supplied with HE8408 remote switch for two heat settings and two fan speeds.

Optional ACMC master controller and ACTS temperature sensor available; ACTS must be used with ACMC.
