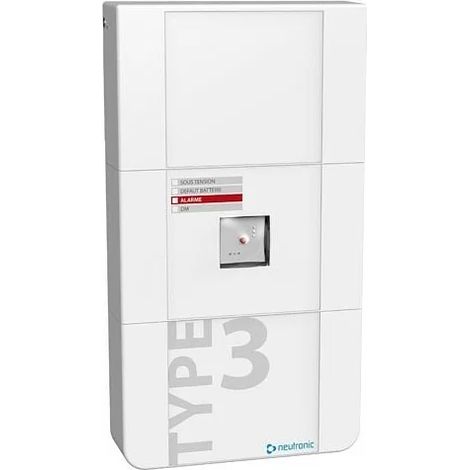

Name: Neutronic TT3-L Stand-alone Manual Light Alarm (type Ma) for type 3 alarms
Brand: NEUTRONIC
SKU: TT3-L
Availability: OutOfStock

Product information

Description

General description

The Neutronic TT3-L Stand-alone Manual Light Alarm (type Ma) is designed to enhance the BAAS type 3 range by providing a dedicated light signal. This manual type unit ensures that a light signal is transmitted even during power outages or cable breaks, making it a reliable choice for emergency situations.

Technical specifications

Dimensions: 26.5 x 15 x 5.3 cm

Material: ABS

Color: White

Flashing color: Red

Frequency: 1Hz+

Luminous class: S

Main power supply: 230 VAC, 50 Hz +/- 10%

Primary consumption: < 10 mA

Backup power supply: Ni-mh battery 12 V, 600 mAh

Auxiliary dry contact: 8A - 250 Vac or 5 A - 30 Vdc

Autonomy: > 12H standby + 5 min alarm

Line length: 1000 m or 2000 m

Cable: 1 pair 8/10e or 1 pair 1.5 mm2

Storage temperature: -20°C to +70°C

Operating temperature: -10°C to +55°C

Protection rating: IP 40

Shock resistance: Not specified

Compatibility and accessories

Contents of BAAL TT3-L: 1 manual type unit

1 manual

1 battery

1 release key (located on the back of the unit)

Other information

This equipment meets the requirements of article GN-8 of the ERP fire safety regulations.

Features

Brand
NEUTRONIC
Length
265 mm
Width
15 cm
Height
5.3 cm
Material
Acrylonitrile butadiene styrene (ABS)
