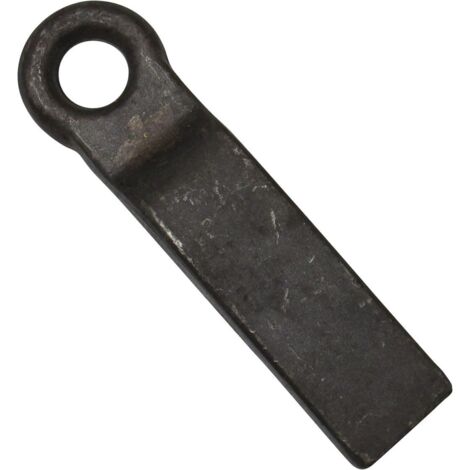

Cranked Trailer Hitch Eye 16" Mild Steel (24 Ton Weld On Towing Ring)

Name: Cranked Trailer Hitch Eye 16" Mild Steel (24 Ton Weld On Towing Ring)
Brand: SECUREFIX DIRECT
SKU: SFAG0102B
Availability: OutOfStock

Product out of stock

Product information

Description

General description

Our Cranked Trailer Hitch Eye is designed for robust towing applications, made from durable mild steel and intended to be welded onto trailers. It features an eye as the attachment point for secure towing. The hitch eyes are shot blasted and finished in self-colour for enhanced durability. We also offer towing eye bushes that fit directly into the eye, allowing for the use of a pin instead of a tow ball.

Technical specifications

Material: Mild Steel

Product Codes and Dimensions:

SFAG0102A: A (MM) 306, B (MM) 30, C (MM) 90, D (MM) 111, E (MM) 51.5, F (MM) 49, Max Breaking Load: 24 Ton

SFAG0102B: A (MM) 404, B (MM) 30, C (MM) 91.5, D (MM) 112.5, E (MM) 51.5, F (MM) 58, Max Breaking Load: 24 Ton

SFAG0102C: A (MM) 455, B (MM) 30.5, C (MM) 91, D (MM) 112.5, E (MM) 51.5, F (MM) 58, Max Breaking Load: 24 Ton

SFAG0103B: A (MM) 400, B (MM) 30.5, C (MM) 92, D (MM) 112.5, E (MM) 51, F (MM) 64, Max Breaking Load: 35 Ton

SFAG0103A: A (MM) 309, B (MM) 30, C (MM) 90.5, D (MM) 111, E (MM) 50.5, F (MM) 52, Max Breaking Load: 35 Ton

Installation

Always ensure that welding is carried out by a qualified person. General rules for installation include preheating the area, avoiding tack welding, and refraining from short thin runs.
