DC 12V Magnetic Electromagnetic Lock, Electric Control Electromagnetic Lock, Mail Cabinet Drawer Locker Smart Magnetic Steel Locking Latch for System
You may also like
Compare with similar items
Product information
Description

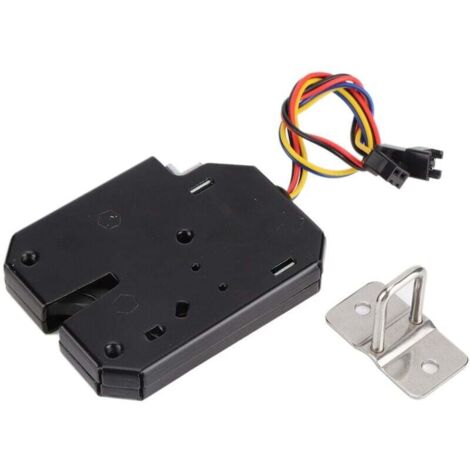

【Electronic Lock with Lever】There are two parts: the black-painted "fixed" part and the metal hook. You have to slam the door to close it and apply 12V to the wires to unlock it. The electromagnetic lock is mainly made of carbon steel; the locking hook can withstand a pull of 150kg. Electromagnetic lock
【Open via Intercom】The lock can be opened via intercom with a little DIY. You just need to send a 12V 2A pulse, so you'll need a small relay in case of insufficient power, along with a 12V 3A power supply. To secure the cupboards, so that children cannot access them.
【Precautions when Connecting】Electromagnet. The lock should not be powered for more than 3 seconds and the voltage should be 12V 2A. If you are using a relay with a keypad, everything will turn off when you unlock it. Because the power supply is not powerful enough, you must power the lock separately or use a dedicated power supply for the lock.
【Energy Saving and Long Lifespan】Shockproof, puncture-proof, and anti-theft protection. Mechanical lifespan, under design conditions, is approximately 500,000 cycles. Suitable for a load of 0.5 to 4 kg.
【Easy to Use】Electromagnetic lock for easy installation, without limitations on left, right, front, or back, and allows for mechanical unlocking of the tabs. Built-in unlock status detection. Size approx. 5.7 x 7.2 x 1.4 cm. Application for delivery cabinets, refrigerated cabinets, mailboxes or newspaper boxes, self-service cabinets, counters.
Features:
Condition: 100% Brand New
Main Material: Carbon Steel
Surface Treatment: Electrophoretic Paint Plating (Frog Neutral Test over 500 Hours)
Working Mode: Independent Type (Locked when turned off and closed; Unlocked when powered on)
Electrical Parameters: DC12V2A
Mechanical Lifespan: In design load state, approximately 500,000 cycles
Electromagnet Lifespan: In rated operating condition, over 1,000,000 cycles
Locking Hook Force: 150kg (No Permanent Deformation)
Ambient Temperature: -40~60
Size: approx.5.9x7.3x1.3cm/2.32x2.87x0.51inch
Package weight:170g
Features
- BrandSNQ
- Pcs per pack1
- ColourBlack
- Height1 cm
- Width1 cm
