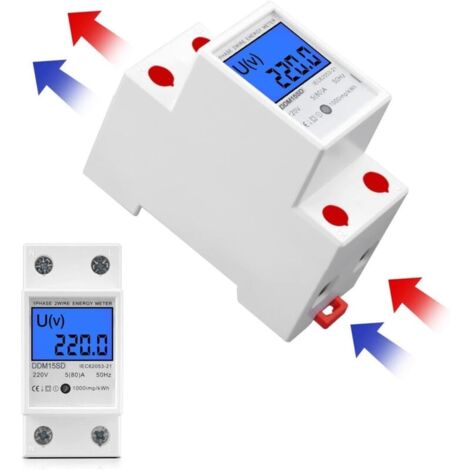

DDM15SD Single Phase Energy Meter, 50 Hz 5 (80) A Max Modular Electricity Meter, 1 Phase 2 Pole DIN Rail Electricity Meter with LCD Display, AC Current Meter,
You may also like
Compare with similar items
Product information
Description
The high-quality digital electricity meter is made of high-density ABS insulating material, providing excellent insulation and durability. Compact and lightweight, it is designed for efficient use.
Technical SpecificationsRated Voltage: 220 V
Rated/Maximum Current: 5(80) A
Rated Frequency: 50 - 60 Hz
Operating Temperature Range: -20°C to +55°C
Dimensions: 78.5 x 36.5 x 65.8 mm
LCD Display with LED Pulse Indicator
Display: kWh, V, A, P (W)
S0 Interface: 1000 Pulses/kWh
Mounting Width: 35 mm
Clamping Cover Included
Compatibility and AccessoriesStandard 35 mm DIN Rail Installation
Compatible with Various Electrical Systems Single-phase
InstallationEasy to install, the meter attaches quickly. The DIN rail attaches without special tools.
UseThis multimeter accurately measures voltage, current, power, and energy in kWh. Thanks to microelectronic technology, it displays data on a large backlit LCD screen, making it easy to read, even in the dark.
Other informationThis multimeter operates in environments from -25°C to +55°C. Please note that it does not have a reset function.
Features
- BrandWOIYIC
- Voltage220 V
- Amperage80 A
- Frequency50 Hertz
- Number of phase(s)Single-phase
