Product information
Description

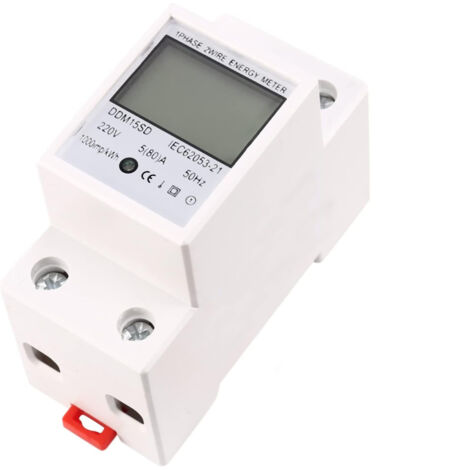

High Quality - The electricity meter is made of high-density ABS insulating material, which offers good insulation, durability, a small size, and light weight.
LCD Backlight - This digital electricity meter features a large backlit LCD screen with a blue backlight for easy reading at night. Utilizing microelectronics and digital processing technology, the data display is accurate.
Multifunctional Detection - Displays voltage, current, power, and kWh energy. Low power consumption, high accuracy, high overload protection, and anti-theft current.

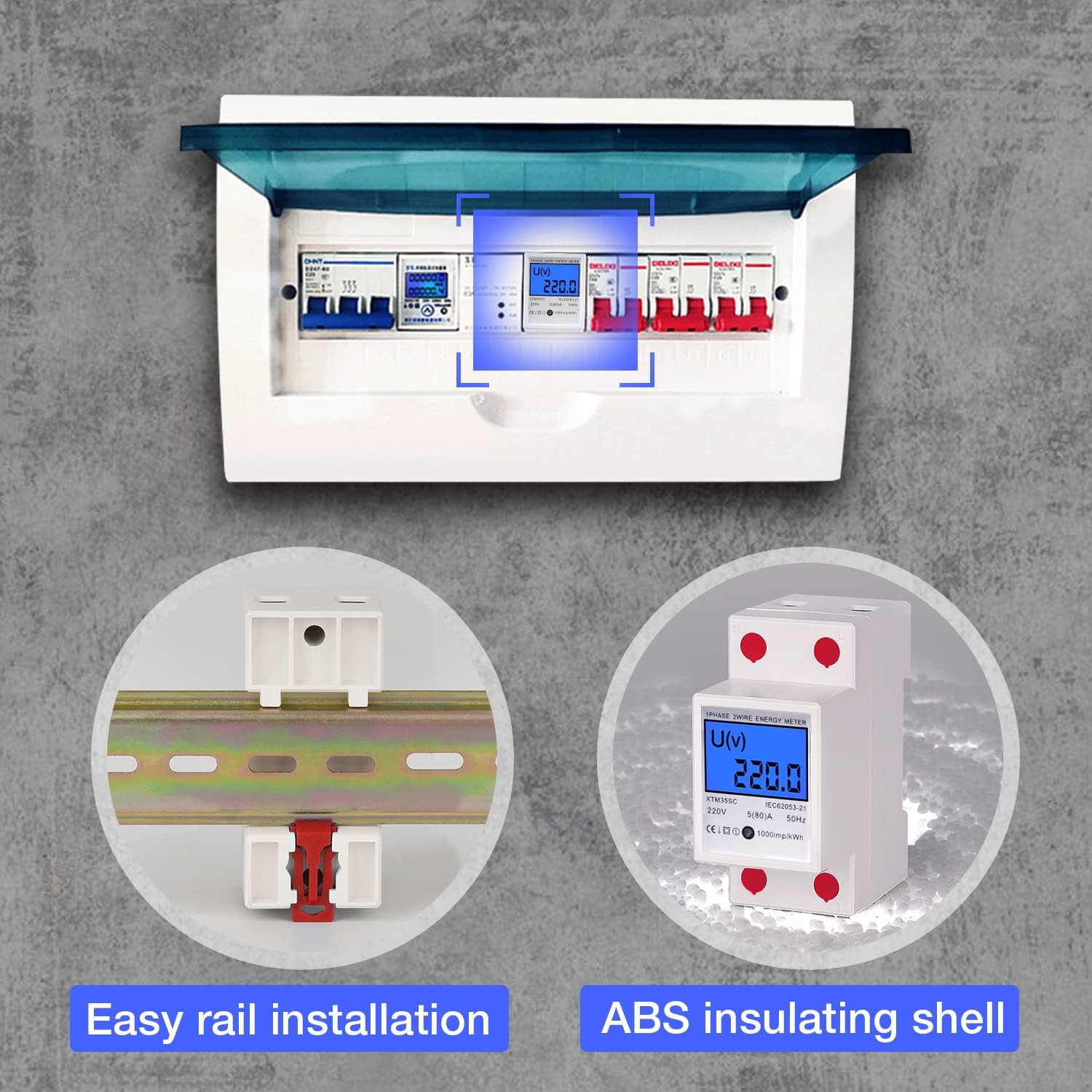

DIN Rail Electricity Meter - Mounts on a standard 35mm DIN rail, easy to install, and can be quickly snapped onto the DIN rail.
Package Contents - 1 x LCD digital current electricity meter. It can operate in an environment of -25 to 55 ~ 55 degrees Celsius.
Note: This product does not have a reset function.Specifications:
- Rated Voltage: 220 V.
- Rated/Maximum Current: 5(80) A.
- Rated Frequency: 50 - 60 Hz.
- Operating Temperature Range: -20 °C to +55 °C.
- Dimensions: 78.5 x 36.5 x 65.8 mm.
- LCD Display with LED Pulse Indicator.
- Displays kWh, V, A, P (W)
- S0 Interface: 1000 pulses/kWh
- Recessed Width: 35 mm.
- Clamping Cover Included - Sealable Cover
Features:
1. Thanks to microelectronics and digital processing technology, the measurement of electrical energy is precise and reliable.
2. The electricity meter can measure positive energy when measuring electrical energy and clearly displays the reading on the backlit LCD screen.

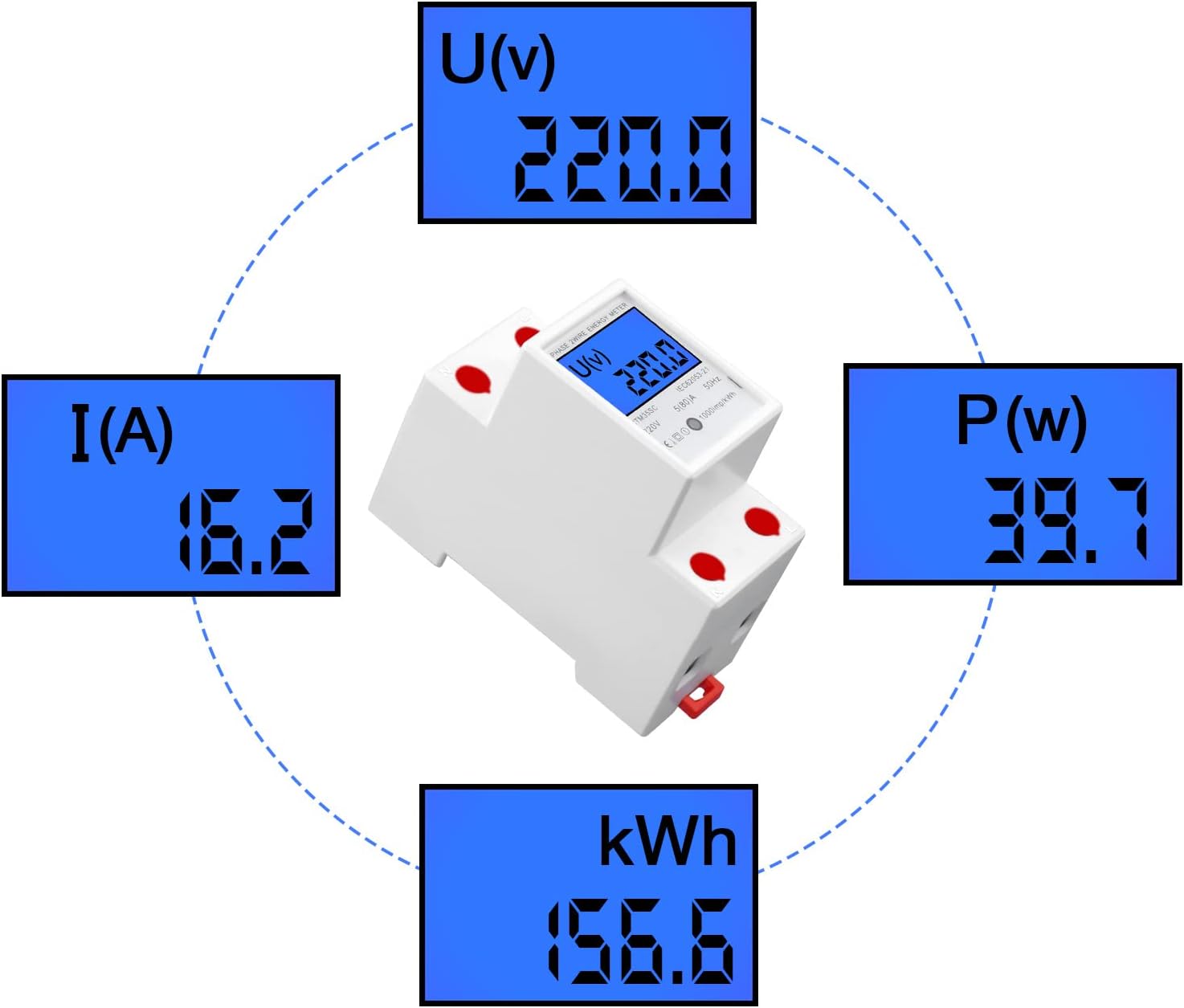

3. Displays voltage, current, power, and electrical energy in kWh. Four data points are automatically displayed alternately every 6 seconds.
4. Mounts on a 35mm single-phase DIN rail.
5. Low power consumption, high accuracy, strong overload capacity, and anti-theft protection.
6. The integrated circuit is created using a precise SMT process with good resistance to electromagnetic interference. Uses multilayer printed circuit board technology, excellent conductivity.
Features
- BrandBASETBL
- Frequency50 Hertz
- Number of phase(s)Single-phase
- Type of electrical installationDIN rail
- Meter typeElectricity
