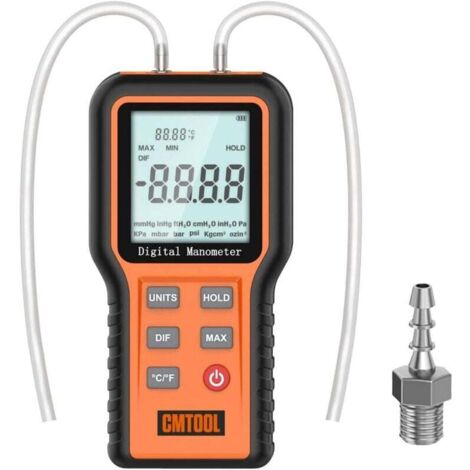

Differential Pressure Gauges, Digital Pressure Gauges, Portable Dual-Port Pressure Gauges with 12 Selectable Units, Gas Pressure Gauges for Heating, Ventilation, and Air Conditioning
You may also like
Compare with similar items
Product information
Description
This instrument measures the air pressure of a single pipe or the differential pressure of two pipes. It is equipped with a high-quality pressure sensor, a high-precision analog-to-digital converter (ADC), and a low-power microcontroller. Multifunctional, it offers temperature/pressure measurement and storage, consumption recall, data hold, max/min value mode, DIF mode, etc. It is suitable for measuring ventilation and air conditioning systems and is widely used for gas measurement, calibration, and other pressure-related applications.
Features:
Equipped with a high-quality pressure sensor, a high-precision analog-to-digital converter (ADC), and a low-power microcontroller.
Professional digital pressure gauge for measuring indoor temperature, with a wide measuring range, high resolution, and high accuracy.
Multifunctional, it offers temperature/pressure measurement and storage functions, consumption recall, data hold, max/min value mode, DIF mode, etc.
℃ and ℉ switchable.
It is possible to set 12 pressure units: mmHg, inHg, ftH₂O, cmH₂O, inH₂O, Pa, kPa, mbar, bar, psi, kgcm², and ozin². Equipped with a large digital display, it clearly shows the data. It offers fast, real-time pressure measurement via a single channel and pressure difference detection between two sensing ports via two channels. It is suitable for measuring ventilation and air conditioning systems and is widely used for gas measurement, calibration, and other pressure system-related applications. Specifications: Name: Digital Pressure Gauge Material: ABS Display: LCD Battery: 1 x 6F22, 9V, 250mAh battery (not included) supplied)Pressure measurement range: ± 2,999 psi
Accuracy: ± 0.3% of full scale (at 25°C)
Number of data points stored: 100
Maximum pressure: 20 kPa
Units: Switchable °C/°F
Low battery indicator: ≤ 6.8 V
Automatic shut-off: 15 min after inactivity
Operating temperature: 0-50°C (32-132°F)
Storage temperature: -10°C to 60°C (14-140°F)
Dimensions: 159 x 76 x 32 mm / 6.26 x 2.99 x 1.26 in
Carrying bag dimensions: 180 x 110 x 30 mm
Weight: 260 g
Package dimensions: 205 x 145 x 40 mm
Package weight: 290 g
Contents:
1 digital pressure gauge
2 tubes
1 adapter
1 user manual
1 carrying bag
Features
- BrandTEHTUY
- Width1 cm
- MaterialAcrylonitrile butadiene styrene (ABS)
- Connection configurationF-F
- Pipe thread size1/4" (8x13)
