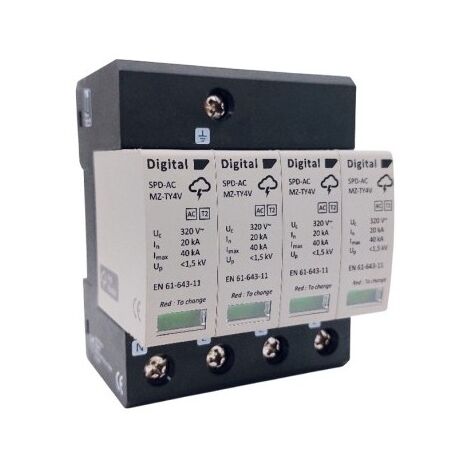

Digital Electric 08204 AC 4P/Imax 40kA/Type II plug-in surge protector

Sold by AVB Negoce

You may also like

Compare with similar items

Product information

Description

General description

Mandatory in keraunic zones defined by NF C15-100, this Digital Electric 08204 AC 4P/Imax 40kA/Type II plug-in surge protector is designed to protect circuits against atmospheric overvoltages as well as overvoltages induced in the network.

Technical specifications

  • Cartridge technology: Varistor
  • Dimensions: 4 Modules
  • Protection: 4×25A circuit-breaker (02168)
  • Type: 2
  • Protection level: 1.5 kV
  • Maximum discharge current: 40kA
  • Nominal discharge current (8/20µs): 20kA
  • Number of poles: 4 Poles
  • Cartridge type: Plug-in with indicator
  • Standard: IEC 61643-11
  • Features

    • Brand
      DIGITAL
    • Material
      Plastic
    • Number of phase(s)
      Single-phase
    • Number of modules
      4
    • Breaking capacity
      40000 A
