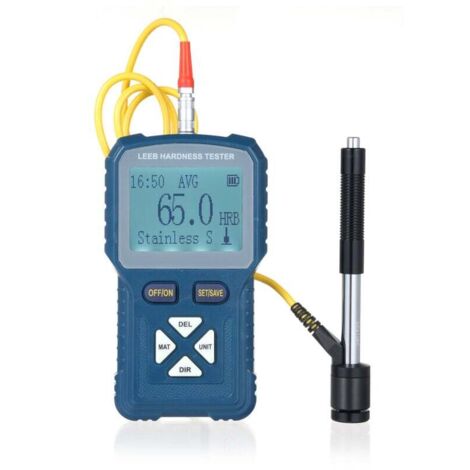

Digital Hardness Tester, Portable Durometer, TFT Color Screen, ABS Hardness Meter, High Precision HLD/HB/HV/HS/HRA/HRB/HRC

~~£320.97~~

Of which environmental contribution £0.10 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

The digital hardness tester is a high-precision portable device designed to measure the hardness of various materials. It features a color TFT screen and an ABS housing, offering durability and ease of use. This hardness tester is capable of measuring several hardness scales, making it versatile for different types of materials.

Technical Specifications

Model: LS-200
Material: ABS
Measuring Direction: 360º support (vertical downwards, inclined downwards, horizontal, inclined upwards, vertical upwards)
Measuring Range: (170-960) HLD, (17.9-69.5) HRC, (19-683) HB, (80-1042) HV, (30.6-102.6) HS, (59.1-88) HRA, (13.5-101.7) HRB
Hardness Unit: Richter (HLD), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Rockwell A (HRA) Vickers (HV), Shaw (HS)
Display value error: ±6% (HLD = 800)
Display value repeatability: 0.8% (HLD = 800)
Display: 128 × 64 dot-matrix LCD
Power supply: 1800 mAh rechargeable lithium battery
Continuous operating time: Approximately 20 hours
Operating conditions: Operating temperature -10℃ ~ 50℃, Storage temperature -30℃ ~ 60℃, Relative humidity ≤ 90%
Item size: 148 * 83 * 30 mm / 5.82 * 3.26 * 1.18 inches
Weight of Item: 201 g / 7.09 oz
Package Weight: 636 g / 22.43 oz
Package Size: 23 * 19 * 5 cm / 9.05 * 7.48 * 1.97 inches

Compatibility and Accessories

Applicable Materials: Steel and Cast Steel, Alloy Tool Steel, Stainless Steel, Gray Cast Iron, Ductile Iron, Cast Aluminum Alloy, Copper-Zinc Alloy (Brass), Copper-Tin Alloy (Bronze), Pure Copper, Forged Steel

Other Information

Language: Chinese and English (optional)

Features

Brand
TEHTUY
Warranty
1 year(s)
Pcs per pack
1
Power source
Manual
Availability of spare parts
1 year(s)
Material
Acrylonitrile butadiene styrene (ABS)
Micrometer type
Digital
ManoMano Reference
ME99039683
MMID
644165427942
Product code
ZJL-mano-08721
EAN
6282768160736
