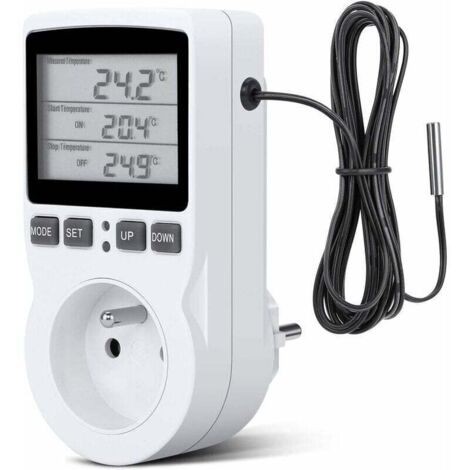

Digital Timer Socket, Programmable Digital Socket with Probe, Programmable Digital Timer, Thermostat Socket for Greenhouse Heating

About this item:
Intelligent Temperature Controller: Temperature range: -40°C to 120°C, Temperature Control Accuracy: ±1%. The Temperature Controller plug can automatically switch between heating and cooling modes and control heating/cooling during operation by setting the equipment's start and stop temperature.

Various Functions: The LCD screen can display the temperature control mode and 4 timer modes F01-F04. And with temperature correction function, screen lock protection, and memory function (all current settings are saved after power-off).

Intelligent Time Control: This plug-in thermostat can detect temperature, set the on/off temperature, and has cycle time control, on/off timer, off timer, and timer switching functions. Time range: 0-99 hours and 59 minutes, time accuracy: up to 10 minutes. Maximum load: 16A (2), 3680W.

1.8m Temperature Probe: The plug-in thermostat comes with a 1.8m wired temperature probe for connection to the measurement point, with a temperature detection range of -40°C to +120°C.

Multiple Uses: The digital temperature controller plug can intelligently control temperature and time. It is widely used in household wall heating and other applications such as greenhouses, aquariums, carbon crystal heaters, thermostat switches, portable air conditioners, and intelligent aquaculture control.

Product Description:
Specification:
1. Rated Voltage: 230VAC 50HZ.
2. Rated Load: MAX 16A 3680W.
3. Temperature Range: -40 ~ 120 ℃.
4. Temperature Control Error: ± 1%.
5. Temperature Display Resolution: 0.1 ℃.
6. Timing Error: MAX 10 minutes.
F01: Cycle Timing Mode:
Press the "MODE" button to switch to F01. Press the "SET" button to set the ON (start hour/minute) and OFF (stop hour/minute) values. The ON value is the system's operating time, and the OFF value is the system's off time. This mode is the cycle timer, which can control the system to operate intermittently.

F02: Synchronization Mode Enabled:
Press the "MODE" button to switch to F02. Press the "SET" button and set the hours/minutes. In this mode, the system is controlled to operate at the specified time. For example, if CD ON is set to 30 minutes, the countdown will start, and the system will automatically start after 30 minutes.

F03: Timer Mode:
Press the "MODE" button to switch to F03. Press the "SET" button and set the hours/minutes. In this mode, the system is controlled to stop at the specified time. For example, if you set CD OFF to 30 minutes, the countdown will begin and the system will automatically shut off after 30 minutes.

F04: Timer On/Off Mode:
Press the "MODE" button to switch to F04. Press the "SET" button and set the CD ON (hour/minute) and CD OFF (hour/minute) values. In this mode, the system is controlled to start and stop at the set time. For example, if you set CD ON to 30 minutes and CD OFF to 40 minutes, the system will start operating after 30 minutes, and it will stop operating after 40 minutes.
