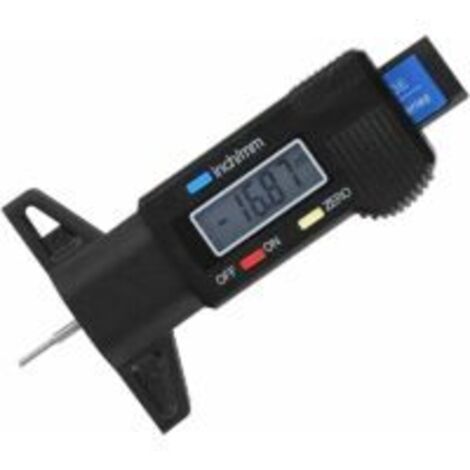

Digital tire depth gauge, tread depth gauge, 0-25 mm metric/imperial LCD display, battery not included, for motorcycles, vans and trucks from General Motors

OVERVIEW

The digital depth gauge measures from 0 to 25 mm with an accuracy of 0.01 mm. It features a large LCD display and allows zeroing in any position, increasing the accuracy of tests and measurements. Easy to read and use, with inch-to-millimeter conversion system. This gauge is ideal for measuring tread depth, brake pad wear, and brake lining wear. TECHNICAL DATA Measuring range: 0–25 mm Accuracy: 0.01 mm Display: Large LCD display Power supply: Manual on/off Zeroing: Any position Conversion system: Metric/inch Applications: Tread depth, brake pad wear INSTALLATION To use, zero the gauge in any position. Place it vertically on the tire surface, insert the measuring rod into the tread depth, and read the displayed measurement. APPLICATION: It is recommended to take several measurements and calculate the average to obtain an accurate reading. Replace the tires when the tread depth is less than 1.6 mm. In case of rapid wear, the sipes should be replaced when the depth is less than 3 mm. In case of normal wear due to rain or snow, they should be replaced when the depth is less than 4 mm. ADDITIONAL INFORMATION WARNING: Keep the device clean. Avoid contact of oil with the shaft. Remove the battery if the device will not be used for an extended period. The display will flash when the battery is low. If an error message appears on the display, remove the battery for 30 seconds.
