DIN Rail Electricity Meter, Single Phase Energy Meter, Digital Voltmeter Ammeter, AC 80-300V 100A Wattmeter, Electricity Consumption Meter, 1 Phase Meter, Watt, kWh

【High Quality and Reliability】The kWh consumption meter is made from high-quality, flame-retardant ABS material and a high-precision chip to ensure safe operation. The single-phase energy meter has good electromagnetic interference resistance, low power consumption, high accuracy, and a long lifespan.

【Technical Specifications】Voltage: AC 80-300V, Current: AC 0.0-100A, Active Power: 0.0-30000W, Electrical Energy: 0-99999 kWh, Power Factor: 1.000-0.000, Cumulative Electrical Energy Time: 0.00-999.59 h.

A standard 35mm DIN guide rail installation.

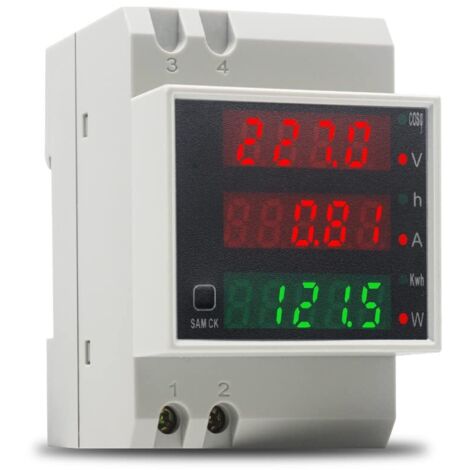

【Multiple Data Display】This wattmeter can display AC voltage, AC current, power factor, active power, electrical energy, and cumulative electrical energy over time. The red and green LEDs make it easy to read the values. When you press the SAM CK button, the meter will switch to display the measured power factor (cosφ), cumulative electrical energy (h), and electricity (kWh).

【Multifunction】1. Reset Function. When the meter displays electrical energy, press and hold the SAM CK button for five seconds to reset the meter. 2. The total electrical energy consumption and cumulative time energy consumption will be automatically recorded when the power is turned off, and when the power is reconnected, the wattmeter will continue to accumulate data. 【Multi-field Application】This electricity meter is easy to install and can be used in schools, markets, homes, industries, laboratories, and other fields. Caution: This electricity consumption meter can only be used to measure 50/60Hz mains electricity. It will be destroyed when used to measure square waves, inverter output, or non-standard sine waves.
