Domestic electric heating thermostat, temperature regulator, thermoregulator, 200-240V

General Description

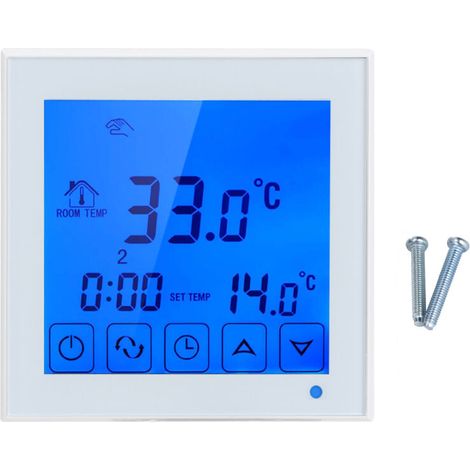

The domestic electric heating thermostat is a temperature regulator designed to provide precise and efficient control of your heating system. It is equipped with a large LCD screen that clearly displays data, making it easy to read and use. Made of high-quality, flame-retardant PC + ABS material, this thermostat is durable and resistant to wear and tear as well as high temperatures. Thanks to its highly reliable single-chip computer, it ensures strong resistance to interference, thus guaranteeing safe and reliable operation.

Technical Specifications

• Operating Voltage: AC200 ~ 240 V, 50/60 Hz
• Load Current: 3A (water heating), 16A (electric heating)
• Temperature Control Accuracy: ±0.5°C
• Set Temperature Range: 5°C - 35°C
• Temperature Limit Range: 5-99°C
• Self-Consumption Power: N/A
• Temperature Sensor: NTC
• Weight: Approx. 230g / 8.1 oz
• Size: Approx. 8.5x8.5x4cm / 3.3 x 3.3 x 1.6 inches

Installation

• Open the main control panel using a 3.5mm slotted screwdriver.
• Connect the back panel and the power supply, then wire according to the wiring diagram.
• Secure the back panel to the cassette with an M4 screw.
• Hang at a 30° angle on the two hooks and press down on the two bottom corners to complete the installation.

Operation

The thermostat is easy to use thanks to its touch buttons, which allow you to set different operating modes. It also has a temperature calibration and antifreeze function, making it suitable for various heating environments. In case of sensor failure, the LCD interface will display an error message and the thermostat will stop heating until the problem is resolved.

Other Information

• Package List: 1 x Thermostat, 1 x Instruction Manual, 2 x Screws.
• Note: Please allow 0-1 inch error due to manual measurement.
• Item colors may slightly differ from those shown in the pictures due to monitor calibrations.
