Dormer A2002.5X6.3 A200 HSS Centre Drill Bit 6.30mm x 2.50mm DORA200630

Name: Dormer A2002.5X6.3 A200 HSS Centre Drill Bit 6.30mm x 2.50mm DORA200630
Brand: DORMER
SKU: A2002.5X6.3
Price: 11.39 GBP
Availability: InStock

Sold by Trade Hut Direct and 3 other sellers

Product information

Description

General description

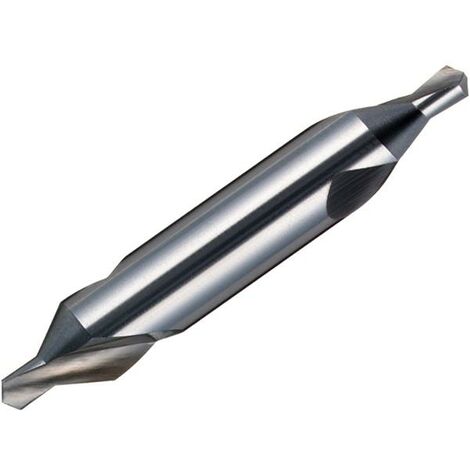

This is a Dormer A200 HSS Centre Drill (DIN 333A) designed for precise drilling and reaming of components that require machining between centres. It features a conical straight shape with a 60° angle, suitable for creating standardized centering holes according to DIN 333A and DIN 332 Part 1 Form A standards. Made from high-speed steel (HSS) without coating, it is ideal for roughing operations on various materials.

Technical specifications

Tip diameter: 6.30 mm

Body diameter: 6.30 mm

Working length: 2.50 mm

Overall length: 45.0 mm

Shape: Conical straight with 60° angle

Material: High-speed steel (HSS), uncoated

Standards: Conforms to DIN 333A and DIN 332 Part 1 Form A

Compatibility and accessories

Compatible with standard drill chucks and holders

Suitable for use with various machine tools for drilling and reaming

Installation

Insert the drill bit into the drill chuck or holder ensuring a secure fit

Ensure the drill is set to the appropriate speed for the material being worked on

Usage

Use for creating precise centering holes in steel, cast iron, and alloy materials

Ideal for roughing operations and preparing holes for further machining

Other information

Made from simple carbon steel and alloy steels suitable for general industrial use.

Features

Brand
DORMER
Weight
110 g
Material
HSS
Certification body
DIN
Suitable for
Metal
