Dormer M9006 M9006 Screw Extractor M20-M30 DORM9006

Name: Dormer M9006 M9006 Screw Extractor M20-M30 DORM9006
Brand: DORMER
SKU: DORM9006
Price: 24.95 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Trade Hut Direct and 1 other seller

Product information

Description

General description

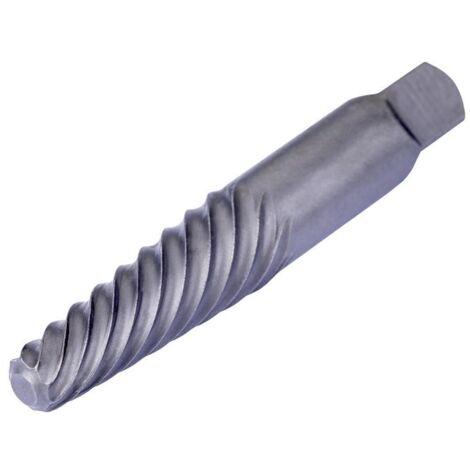

The Dormer M9006 Screw Extractor M20-M30 is designed to efficiently remove broken right-handed bolts and screws from threaded holes without causing damage to the threads. This tool operates counter-clockwise and requires a properly sized guide hole to be drilled prior to use.

Technical specifications

Bolt Size: M20 - M30

Drill Size for Low/Medium Tensile Screws: 10.5mm

Drill Size for High Tensile Screws (+75 tons/sq.inch): 11mm

Bolt Size Imperial: 3/4 - 1in

Drill Size for Low/Medium Tensile Screws (Imperial): 13/32in

Drill Size for High Tensile Screws (+75 tons/sq.inch) (Imperial): 7/16in

Cutting Diameter Step: 9.53mm

Cutting Diameter Second Cutting Step (DC_2): 15.9mm

Clamping Width (WSC): 11.9mm

Clamping Length (LSC): 13.1mm

Overall Length (OAL): 94.4mm

Net Weight: 118g

Installation

Drill a guide hole of proper size before using the extractor.

Features

Brand
DORMER
Element to be extracted
Bolt
ManoMano Reference
ME93509321
MMID
168045276727
Product code
DORM9006
EAN
3603607088920
