Dormer M9007 Screw Extractor M30-M42 for Bolt Removal
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Compare with similar items
Product information
Description

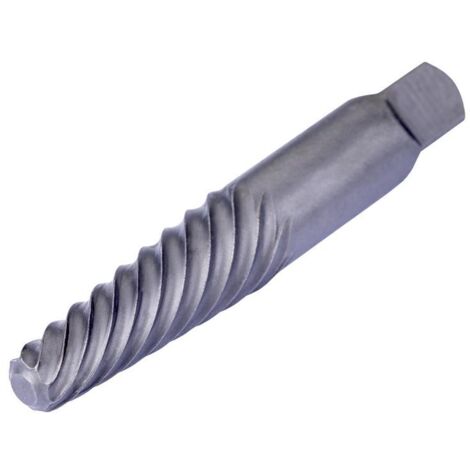

The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts and screws from threaded holes without damaging threads. It's necessary to drill a guide hole of proper size before using the extractor.
1 x Dormer M9007 Screw Extractor M30-M42
Specifications:
Bolt Size: M30 - M42
Drill Size for Low/Medium Tensile Screws: 13.5mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 14.5mm
Bolt Size Imperial: 1 - 1.3/8in
Drill Size for Low/Medium Tensile Screws: 17/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 9/16in
Cutting Diameter Step: 12.3mm
Cutting Diameter Second Cutting Step (DC_2): 19.1mm
Clamping Width (WSC): 14.3mm
Clamping Length (LSC): 17.9mm
Overall Length (OAL): 107.4mm
Net Weight: 180g
Features
- BrandDORMER
- Pcs per pack1
- Element to be extractedBolt
- MaterialAluminium
- ManoMano ReferenceME93509310
- MMID621963119771
- Product codeDORM9007
- EAN3603607088937
