Dormer M9009 Screw Extractor M45-M50 for Broken Bolts & Screws
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Compare with similar items
Product information
Description

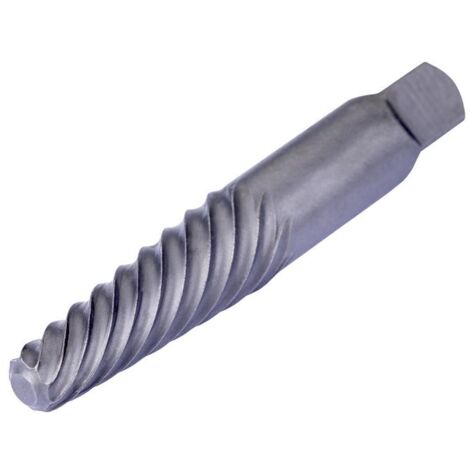

The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts and screws from threaded holes without damaging threads. It's necessary to drill a guide hole of proper size before using the extractor.
1 x Dormer M9009 Screw Extractor M45-M50
Specifications:
Bolt Size: M45 - M50
Drill Size for Low/Medium Tensile Screws: 27mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 28mm
Bolt Size Imperial: 1.3/4 - 2.1/8in
Drill Size for Low/Medium Tensile Screws: 1.1/16in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 1.3/32in
Cutting Diameter Step: 24.61mm
Cutting Diameter Second Cutting Step (DC_2): 32.3mm
Clamping Width (WSC): 24.6mm
Clamping Length (LSC): 22.6mm
Overall Length (OAL): 121.3mm
Net Weight: 640g.
Features
- BrandDORMER
- Pcs per pack1
- Element to be extractedBolt
- MaterialAluminium
- ManoMano ReferenceME93507573
- MMID649403110419
- Product codeM9009
- EAN3603607088951
