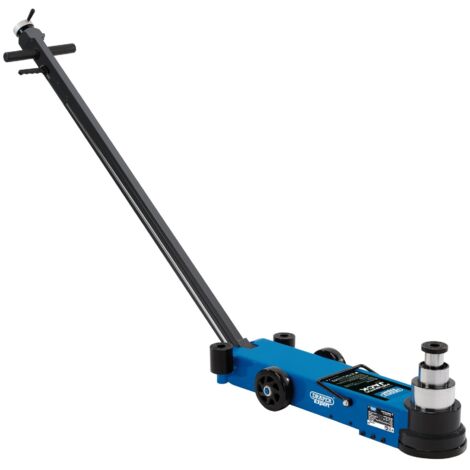

Draper 02080 Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne

Name: Draper 02080 Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne
Brand: DRAPER
SKU: 5010559020805
Price: 1308.31 GBP
Availability: InStock

Sold by BuyaParcel and 1 other seller

Product information

Description

General description

This is an expert-quality, long chassis, low-profile pneumatic jack designed for heavy-duty lifting. It features a compact entry height of 125mm and a total reach of 2210mm, capable of lifting up to 40 tonnes. The jack is equipped with a three-stage adjustable ergonomic handle, safety features, and industrial-grade seals for durability and safety. It includes lift extensions and a standard airline connector for versatile use in professional and industrial settings.

Technical specifications

Capacity: 40 tonnes (stage 1), 20 tonnes (stage 2), 10 tonnes (stage 3)

Minimum height: 125mm

Maximum height: 302mm (stage 1), 347mm (stage 2), 396mm (stage 3) (including extensions)

Lift height: 57mm (stage 1), 45mm (stage 2), 49mm (stage 3)

Operating air pressure: 9–12 BAR (130–174 PSI)

Air consumption: 11.5 CFM

Air inlet: 1/4" BSP

Wheel diameter: 125mm

Wheel width: 47.5mm

Saddle diameter: 70mm

Extensions included: 45mm and 75mm

Handle length: 1380mm

Chassis size: 830 x 179 x 125mm

Net weight: 44kg

Compatibility and accessories

Compatible with standard pneumatic air supplies

Supplied with 45mm and 75mm lift extensions

Includes a 1/4" BSP airline connector for easy connection to air compressors

Installation

Place the jack on a stable, level surface before use

Connect the air supply hose to the 1/4" BSP inlet

Ensure all safety features are engaged before operation

Usage

Use the ergonomic handle to operate the lift, adjusting as necessary.

Features

Brand
DRAPER
Warranty
1 year(s)
Lifting capacity
40 t
Colour
Black
Minimum height
125 mm
