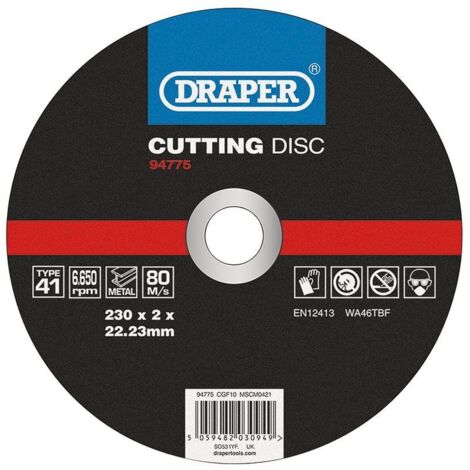

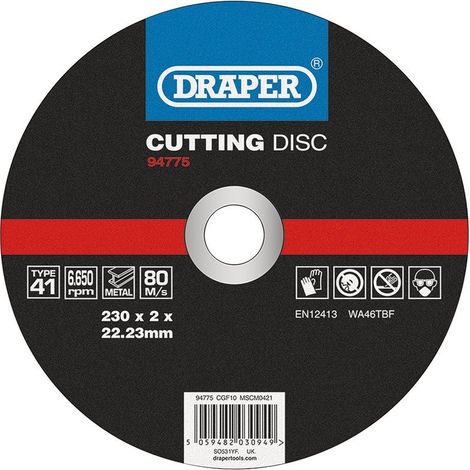

Draper 94775 Metal Cutting Disc – 230 x 2 x 22.23mm for Efficient Metal Cutting
Sold by GravaHaus and 2 other sellers
You may also like
Compare with similar items
Product information
Description
General Description
- This flat cutting disc is designed for fast and precise straight cuts on various metals, including steel, structural steel, and sheet metal. It is suitable for use with angle grinders and cut-off tools, providing efficient performance for metalworking tasks.
Technical Specifications
- Diameter: 230mm
- Thickness: 2mm
- Bore size: 22.23mm
- Cutting speed: 80m/s
- Maximum rotational speed: 20,300rpm
- Profile: Type 41
- Certification: EN12413
Compatibility and Accessories
- Compatible with 230mm angle grinders and cut-off tools with a 22.23mm bore
- Features a stainless-steel ring in the bore for safe mounting
Installation
- Ensure the grinder is turned off and unplugged before installation
- Place the disc onto the machine's spindle, aligning the bore with the mounting nut
- Secure the disc firmly using the appropriate wrench or tool
- Check that the disc is properly mounted and free to rotate before use
Usage
- Use the disc for straight cuts on metal surfaces such as steel and sheet metal
- Operate the grinder at the recommended maximum speed of 20,300rpm
- Wear appropriate safety gear, including gloves and eye protection
Other Information
- Manufactured from high-quality aluminium oxide, resin bonded and reinforced with fibreglass for durability and performance
- Designed to meet EN12413 safety standards
Features
- BrandDRAPER
- Width23 cm
- Weight190 g
- MaterialMetal
- ShapeRounded
