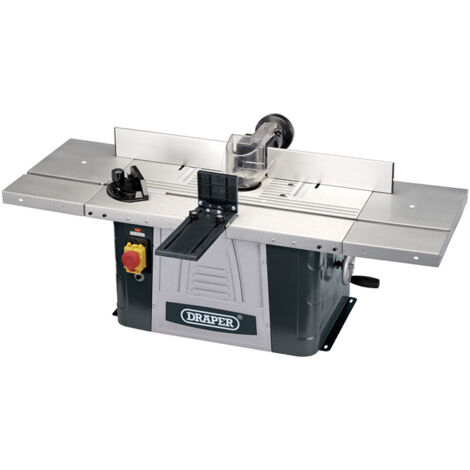

Draper 1500W Bench-Mounted Spindle Moulder with Spindle Mounted Wheels - Model 09536

Name: Draper 1500W Bench-Mounted Spindle Moulder with Spindle Mounted Wheels - Model 09536
Brand: DRAPER
SKU: bmsm
Price: 339.34 GBP
Availability: InStock

Sold by GravaHaus and 1 other seller

Product information

Description

General description

This is a powerful and versatile woodworking spindle moulder with a 1500W motor, designed for precise shaping and profiling of wood. It features adjustable spindle height and variable speed control, allowing for a wide range of applications. The machine includes left and right extension wings for increased work surface and stability, making it suitable for both professional and DIY use.

Technical specifications

Motor power: 1500W

Spindle speed: 11,500 to 24,000 rpm

Spindle travel: 0 to 40mm

Table size: 610 x 360mm

Table size with extension wings: 1030 x 360mm

Weight: approximately 22kg

Dust extraction port with 100mm adaptor

Supplied with: rear fence, back plates, chuck guard, non-return guides, and multiple bushes (6.0, 6.35, 8.0, 12.0, and 12.7mm)

Compatibility and accessories

Compatible with various spindle bushes and accessories for different profiling needs

Includes dust extraction port for cleaner operation

Installation

Easy to set up with included back plates and fence

Requires a standard power outlet and proper grounding

Usage

Suitable for shaping, profiling, and edge work on wood

Adjust spindle height and speed according to the material and task

Other information

This product is supplied in a display carton and includes all necessary components for immediate use.

Features

Brand
DRAPER
Length
1 cm
Width
36 cm
Weight
22 kg
Power
1500 W

Advice from

Wood router buying guide

The ultimate tool for anyone who likes to make a little sawdust, a router offers many possibilities. The basic principle? A motor mounted on a fixed base spins a bit at high speed. Bits come in different designs and cross-sections to give your project the most desirable shape; rabbet, chamfer, or straight edge.

Read our guide

Visit the DRAPER store

Draper was was started in 1919 when the founder, Bert Draper, made the purchase of the original warehouse. Today the Draper brand is known around the world for its core range of quality tools.
