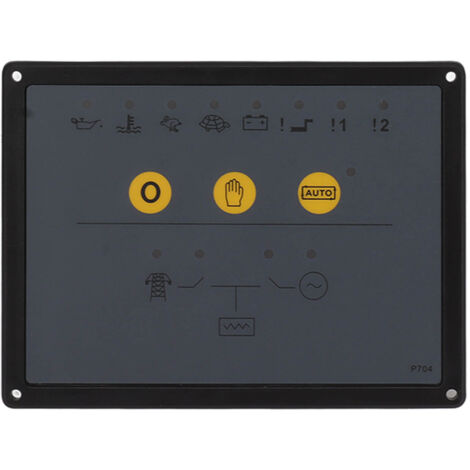

DSE704 8‑35V Generator AMF Controller Auto Start Control Module Panel for Diesel Engine

1、Start Attempts: With three automatic start attempts and disconnection, and adjustable preheating, start and stop time, with an indicator for failed start attempts. 2、Alarm and Warning: Equipped with low oil pressure and high water temperature alarms, as well as alerts for over speed and under speed conditions, ensuring the safe operation of the diesel engine. 3、Adjustable Failure Voltage: The controller allows the user to adjust the voltage value for mains failure, providing customization options for the specific needs of the generator system. 4、Multiple Input and Output Ports: With two configurable auxiliary input and output ports, the controller offers versatile connectivity options. 5、LED Indicator: All alarm and operating statuses are clearly indicated by high visibility red LED lights, providing easy monitoring and visibility of the generator's operational conditions. Item Type: Generator AMF Controller Material: ABS Size: Approx. 165x125x28mm/6.50x4.92x1.10in Mounting Hole Spacing: Approx. 153x113mm/6.02x4.45in Applicable: Diesel engine Model: DSE704 DC Power Supply: 8-35V continuous Starting and De Heightening: Can save 0V for 50 milliseconds, but the minimum power supply before detachment is 10V and the power supply is restored to 5V, which can be done without internal batteries Maximum Current: 50mA standby 10mA operation Input Range: 75 (center) to 277 (center) 3-phase 4-wire AC (+20%) Input Frequency: 50-60 Hz at rated engine speed (min: 75V AC centerline) (starting detached from 15V midline) Start Up Output: 1.2A DC at supply voltage Fuel Output: 1.2A DC at supply voltage Auxiliary Output: 1.2A DC at supply voltage Charge Failure Excitation Range: 0V to 35V Operating Temperature Range: -30 to +70 Celsius degree 1 x Generator AMF Controller 1 x Manual
