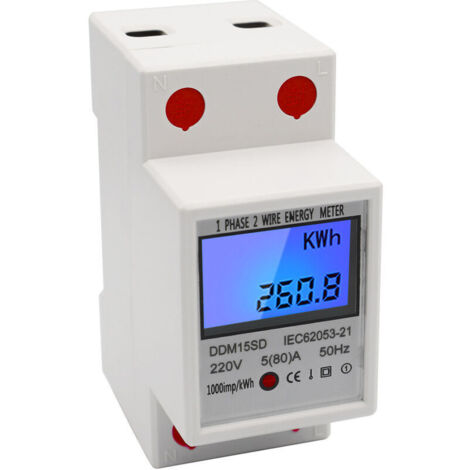

EDF Meter Single-phase DIN rail energy meter 5-80A 220V 50Hz electronic kWh meter with backlit LCD digital display DDM15SD, white - white
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description
The DDM15SD energy meter is an essential device for accurately monitoring electricity consumption. Its backlit LCD digital display allows for easy viewing of consumption, voltage, current, and power. Designed for easy DIN rail mounting, it is ideal for home or professional use.
Technical Specifications
- Voltage: AC 220V / 50Hz
- Current: 5A - 80A
- Maximum Power: 17000W
- Pulse Output: 1000 imp/kWh
- Pole Width: 17.5 mm
- Accuracy: First Class
- Ambient Temperature: -20°C to +50°C
- Dimensions: 7.8 x 3.7 x 6.6 cm
- Weight: 200 g
Compatibility and Accessories
- 35 mm DIN rail mounting
- Compatible with Up-Out and Down-In / Up-In and Down-Out
Installation
The energy meter is designed for easy DIN rail mounting. Be sure to follow the proper wiring instructions for correct installation.
Use
Use this meter to accurately measure and monitor your energy consumption. It is ideal for both home and business applications, enabling efficient tracking of electricity usage.
Other Information
Please note that this energy meter does not have a reset function.
Features
- BrandTEHTUY
- Length1 cm
- Width1 cm
- Height1 cm
- Weight200 g
