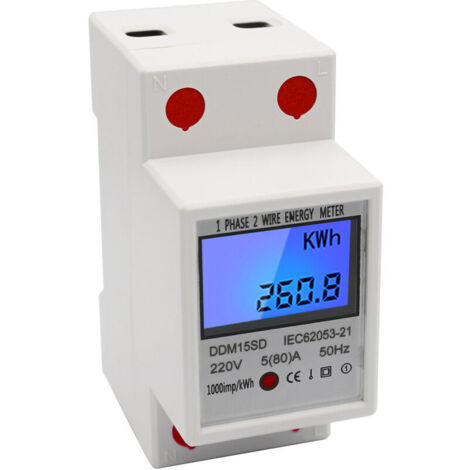

EDF Meter Single-phase DIN rail energy meter 5-80A 220V 50Hz electronic kWh meter with backlit LCD digital display DDM15SD, white - white
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Features:
Energy meter with backlit LCD digital display, alternately showing electricity consumption, voltage, current, and power.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring methods, easy to install.
Adopts microelectronic and digital processing technology to measure electrical energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Specifications:
Material: Plastic
Model: DDM15SD
Accuracy: First Class
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: Backlit LCD digital display
Installation: 35mm DIN rail
Pole Width: 17.5mm
Wiring Method: Up and Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃ ~ +50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have a reset function.
Package List:
1 * Energy Meter
Energy meter with backlit LCD digital display, alternately showing electricity consumption, voltage, current, and power.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring methods, easy to install.
Adopts microelectronic and digital processing technology to measure electrical energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Specifications:
Material: Plastic
Model: DDM15SD
Accuracy: First Class
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: Backlit LCD digital display
Installation: 35mm DIN rail
Pole Width: 17.5mm
Wiring Method: Up and Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃ ~ +50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have a reset function.
Package List:
1 * Energy Meter
Features
- BrandTEHTUY
- Amperage1 A
- Accuracy classClass 1.0
- Control functionNo
- Frequency50 Hertz
- Height1 cm
- Width1 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of modules1
- Number of phase(s)Single-phase
- Number of outlets1
- Number of area(s)1
- Weight200 g
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME98941346
- MMID473353951470
- Product codemano-HWLX-05929
- EAN6282768354494
