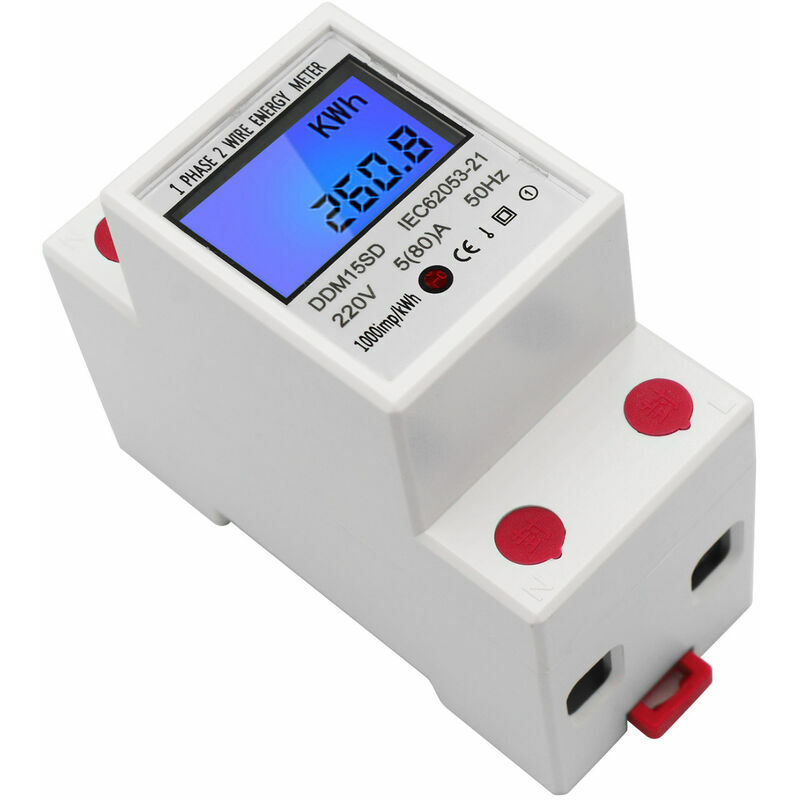

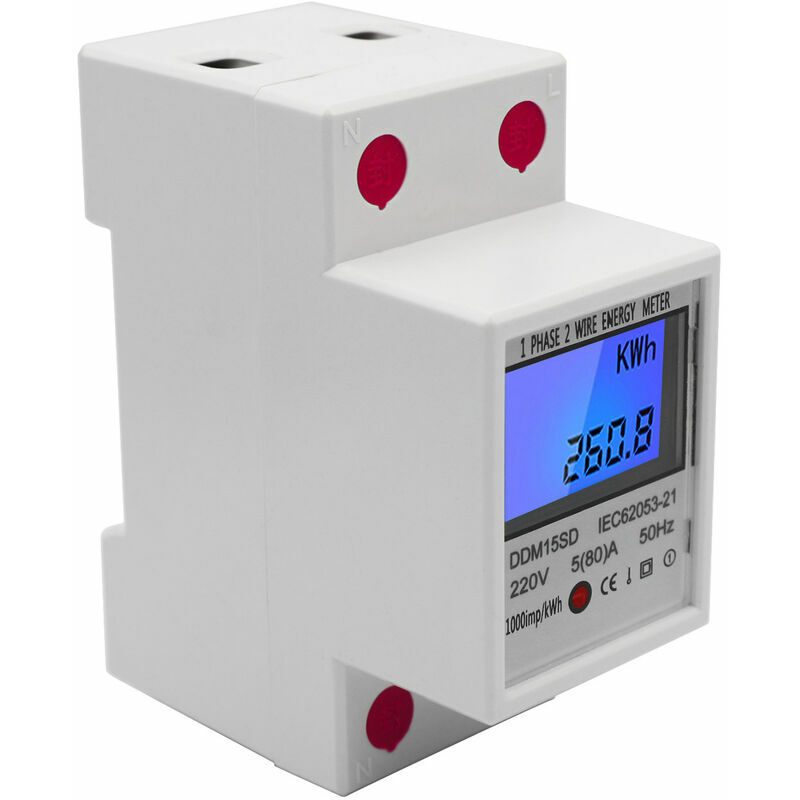

EDF Meter Single-phase DIN rail energy meter 580A 220V 50Hz electronic kWh meter with backlit LCD digital display DDM15SD, white

Features:

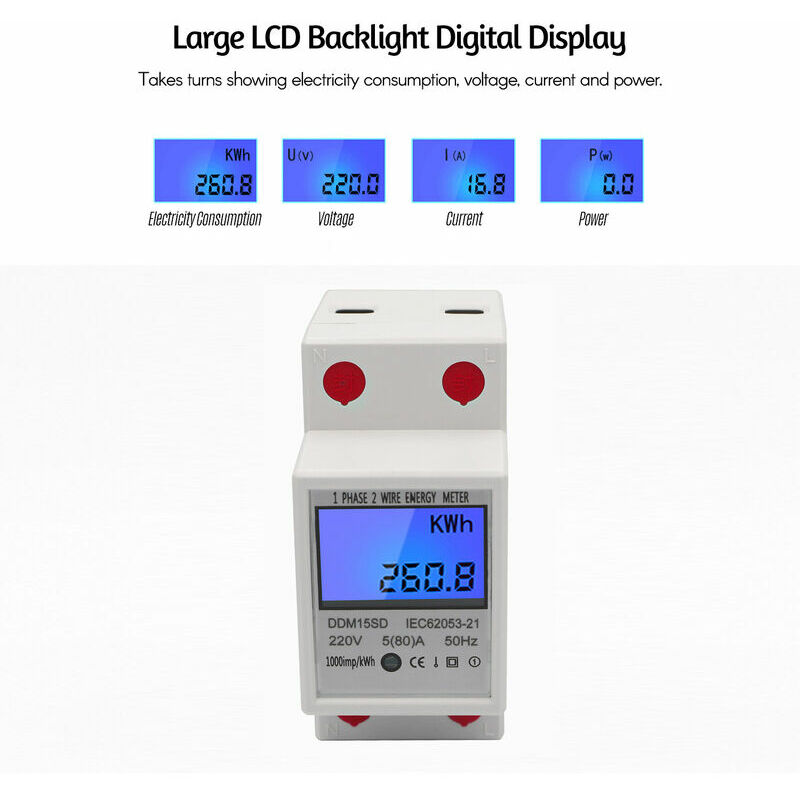

Energy meter with backlit LCD digital display, shows electricity consumption, voltage, current, and power in turn.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring methods, easy to install.
Adopts microelectronics and digital processing technology to measure electrical energy accurately and reliably.
Large integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Specifications:
Material: Plastic
Model: DDM15SD
Accuracy: First Class
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: Backlit LCD digital display
Installation: 35mm DIN rail mm
Pleat width: 17.5mm
Wiring method: up and down / up and down
Power: 17000W
Ambient temperature: -20 ~ + 50
Item size: approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have a reset function.
Package List:
1 * Energy Meter
