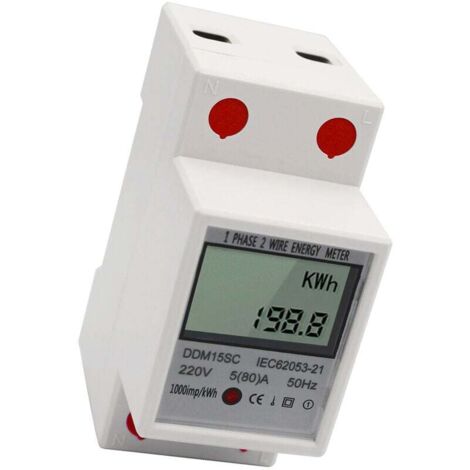

EDF Meter Single Phase DIN Rail Energy Meter LCD Digital Display 5-80A 220V 50Hz Electronic KWh Meter Energy Consumption Monitor DDM15SC, White - White
Buying for your business?
Negotiated prices excl. VAT up to -20%
Sold by Qiudie-homelavafans
You may also like
Compare with similar items
Product information
Description
Features:
Energy meter with LCD digital display, alternately displays electricity consumption, voltage, current and power.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kwh and with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring method, easy to install.
Adopt microelectronics and digital processing technology to measure electric energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.
Specifications:
Material: Plastic
Model: DDM15SC
Accuracy: Grade One
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: LCD Digital Display
Installation: 35mm DIN Rail
Pole Width: 17.5mm
Wiring Method: Up and Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃ ~ +50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have the reset function.
Package List:
1 * Energy Meter
![src=https://images2.imgbox.com/5b/02/fogO3KMC_o.jpg]()
![src=https://thumbs2.imgbox.com/db/61/sI4SPrlh_t.jpg]()
![src=https://thumbs2.imgbox.com/7c/d5/XTKv00ch_t.jpg]()
![src=https://thumbs2.imgbox.com/3f/d0/Cj8nP4gT_t.jpg]()
Energy meter with LCD digital display, alternately displays electricity consumption, voltage, current and power.
Voltage AC220V/50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kwh and with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring method, easy to install.
Adopt microelectronics and digital processing technology to measure electric energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.
Specifications:
Material: Plastic
Model: DDM15SC
Accuracy: Grade One
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: LCD Digital Display
Installation: 35mm DIN Rail
Pole Width: 17.5mm
Wiring Method: Up and Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃ ~ +50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have the reset function.
Package List:
1 * Energy Meter
Features
- BrandGOTRAYS
- Amperage80 A
- Accuracy classClass 1.0
- Frequency50 Hertz
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of phase(s)Single-phase
- Weight200 g
- Voltage220 V
- ManoMano ReferenceME93910459
- MMID960880403910
- Product codeGB-2026444
- EAN7424106096010
