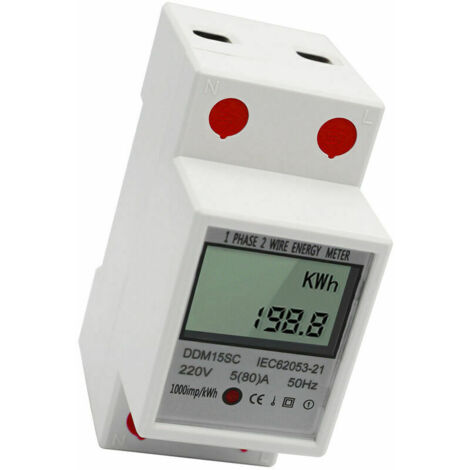

EDF Meter Single-Phase DIN Rail Energy Meter with LCD Digital Display 5-80A 220V 50Hz Electronic Meter Energy Consumption Monitor kWh DDM15SC, White
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Features:
Energy meter with LCD digital display, shows electricity consumption, voltage, current, and power in turn.
Voltage AC220V / 50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring methods, easy to install.
Adopts microelectronic and digital processing technology to measure electrical energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Specifications:
Material: Plastic
Model: DDM15SC
Accuracy: First Class
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: LCD Digital Display
Installation: 35mm DIN Rail
Pole Width: 17.5mm
Wiring Method: Up and Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃ ~ +50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have a reset function.
Package List:
1 * Energy Meter
Energy meter with LCD digital display, shows electricity consumption, voltage, current, and power in turn.
Voltage AC220V / 50Hz, current 5A-80A, power 17000W, pulse output 1000imp/kWh with pulse output indicator.
35mm DIN rail mounting; 17.5mm pole width; Supports Up-Out and Down-In / Up-In and Down-Out wiring methods, easy to install.
Adopts microelectronic and digital processing technology to measure electrical energy accurately and reliably.
Large-scale integrated circuits and precision SMT technology, with good resistance to electromagnetic interference and stable performance.
Specifications:
Material: Plastic
Model: DDM15SC
Accuracy: First Class
Reference Voltage: 220V / 50Hz
Reference Current: 5-80A
Display: LCD Digital Display
Installation: 35mm DIN Rail
Pole Width: 17.5mm
Wiring Method: Up and Down / Up and Down
Power: 17000W
Ambient Temperature: -20℃ ~ +50℃
Item Size: Approx. 7.8 * 3.7 * 6.6cm / 3.1 * 1.5 * 2.6in
Item Weight: 200g / 7.1oz
Package Size: 8 * 7 * 4cm / 3.1 * 2.8 * 1.6in
Package Weight: 300g
Note:
This energy meter does not have a reset function.
Package List:
1 * Energy Meter
Features
- BrandTEHTUY
- Amperage1 A
- Warranty1 year(s)
- Photovoltaic / renewable production compatibilityYes
- Availability of spare parts1 year(s)
- Control functionYes
- Frequency50 Hertz
- Height1 cm
- Width1 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of phase(s)Single-phase
- Power1 W
- Certified billing supportYes
- Voltage1 V
- Meter typeElectricity
- ManoMano ReferenceME98974708
- MMID968862401139
- Product codeZJL-mano-06077
- EAN6282768134294
