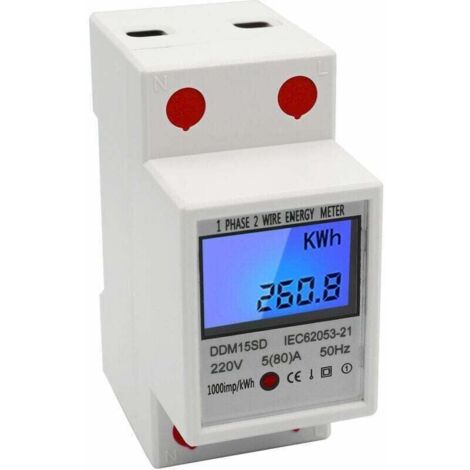

EDF Single Phase Energy Meter for DIN Rail, 5–80 A, 220 V, 50 Hz, Electronic kWh Meter with Backlit LCD Digital Display, DDM15SD, White.
You may also like
Compare with similar items
Product information
Description
Features:
Energy meter with backlit LCD screen. Displays power consumption, voltage, current, and power sequentially.
Voltage: 220V AC/50Hz, Current: 5A–80A, Power: 17,000W, Pulse Output: 1,000 imp/kWh, with pulse output indicator.
35 mm DIN rail mounting; 17.5 mm stem width; compatible with top and bottom entry wiring, as well as top and bottom entry wiring, and easy to install. Utilizes microelectronic and digital processing technology for accurate and reliable electrical energy measurement. Large area integrated circuits and precision SMD technology ensure good resistance to electromagnetic interference and stable performance. URivsIQioVkU4HdlEVCOvmJqupLSMDIfZUAQ_v3XTYZwxc6O5_VkNwZv39gEnR4fxUJCJlr8T4V9hPe43i1DiZYuXpKx5V4LqAKl8q32CSQN0c5Dd2W _h6m9T8yy_tSpPnWIjD0H1qmBEjj_wDrJ6zlkIVbO1xEH33hKSLOi5Xll1HLOfVSFdKNa1sN3_caorSzpnkp7FitRDSGQAn3UUt0wsWQUzGy2h7giK jLa7LH8rxAS12w3s2ZGm552h3Osb4FZOwSvUuhi2GtnMSh1Z7u5qcbWow0P6-UA7rX1xAz7WzkKiq3wGBY-Q6doGj2L2e1F3UuxP-1hqCN1YJSPcCK" width="300" height="300" data-orig-src="https://cdn.manomano.com/external-resources/AAHKMJXYDAFdJAOAIMEbOAchMsjc3QZBtjSFHA9dqEpXPSB65XDJrhSVyThNg87jDURivsIQioVkU4HdlEVCOvmJqupLS MDIfZUAQ_v3XTYZwxYwvLYpRNbL-B2xWc_WZQ_hJ6vRmqFJ5Ws6R5UhYuRgXgKErof18JVMnvrx2 434CY1yknS3gD-2nEOfegRlXLepXu52qlYWMFIHaY2G1HH6KZ67MQXT3PNjMihMeQCibA==">
Features:
Material: Plastic
Model: DDM15SD
Accuracy: Class 1
Reference Voltage: 220 V / 50 Hz
Reference Current: 5–80 A
Display: Backlit Digital LCD
Mounting: 35 mm DIN Rail
Pin Width: 17.5 mm
Wiring: Top/Bottom
Power: 17,000 W
Ambient temperature: -20°C ~ +50°C
Item dimensions: approx. 7.8 × 3.7 × 6.6 cm
Item weight: 200 g
Package dimensions: 8 × 7 × 4 cm
Package weight: 300 g
Note:
This energy meter does not have a reset function.
Package contents:
1 * Energy meter
Features
- BrandCOOCHEER
- Amperage80 A
- Accuracy classClass 1.0
- Control functionNo
- Frequency50 Hertz
- Height6.6 cm
- Width3.7 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of modules1
- Number of entry(s)1
- Number of analog inputs/outputs1
- Number of phase(s)Single-phase
- Number of outlets1
- Number of area(s)1
- Weight200 g
- Certified billing supportYes
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME98278861
- MMID504045187868
- Product codeALOVEZ-398
- EAN3773584134276
