Huffam: IMPERIAL Set of Cente Locatos

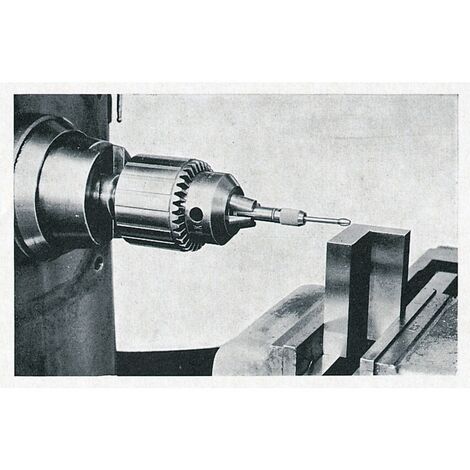

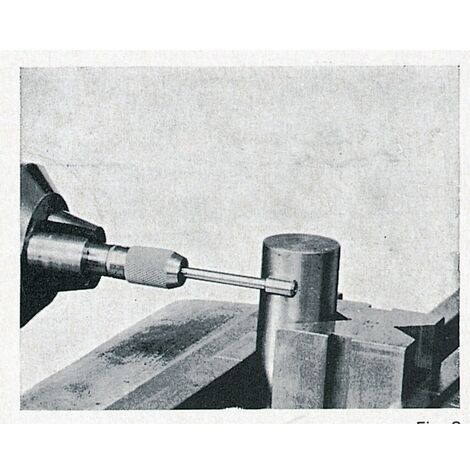

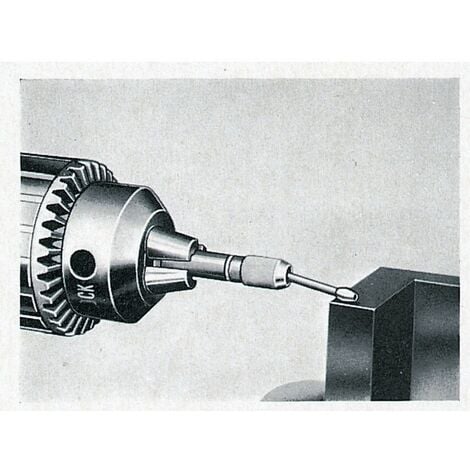

The centre locator provides a quick and efficient means of establishing the required position and can be used by an unskilled operator. Indicates the relationship between the centre line of any machine spindle and a datum face to within .0005 by the 'run-off' method and to within .0002 by using the light 'line' method. Although ideal for use on mills the locator can also be used on drills, lathes or any other rotating machinery employing a chuck.

Features and Benefits
Delivers with accuracy
Available as a metric or imperial set to suit your preferences
Saves you time when locating the centre of a desired matrial

Typical Applications
Engineering
Construction
MPN: IMPERIAL
EAN:

IMPERIAL Set of Cente Locatos Attributes:

Body Diameter:	12mm
Contact Diameter:	0 to 0.2in

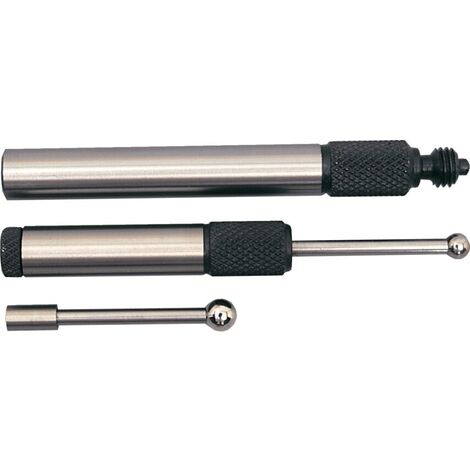

Includes:	3 Piece Imperial Centre Locator
Overall Length:	100mm
Shank Diameter:	10mm
Stem Type:	Ball-ended
Tool Type:	Centre Location Set
