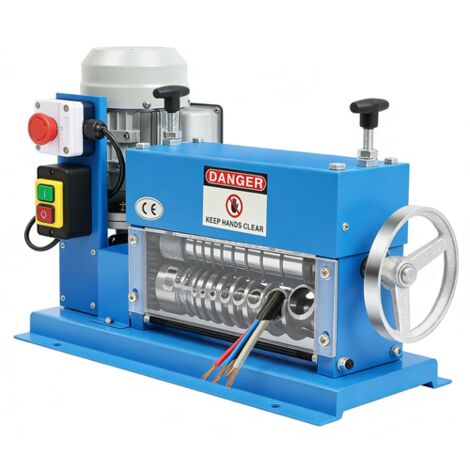

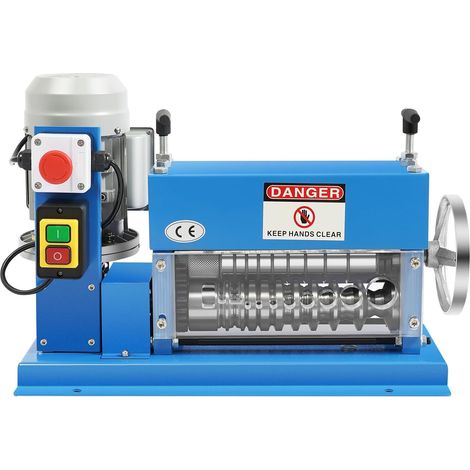

Electric Wire Stripping Machine Cable Stripper 1.5mm-38mm Copper Recycle Tool UK

Description

If you need to regularly strip a lot of wire or strip, our cable wire stripping machine will save you a lot of time. This 11-channel, 10-blade cable wire stripping machine is equipped with an efficient motor for high efficiency and a wide range of wire stripping. It is also designed with an emergency stop button for safe operation. The high-quality aluminum alloy and iron materials give it excellent durability. If you need to dispose of waste wire, this wire stripper is a good choice.



Key Features

High-quality Materials: It is made of sturdy aluminum alloy and iron for durability, so it won't be easily damaged and has a long service life.  It uses finely ground high-speed steel blades, so it is not only very sharp but also wear-resistant, which further improves the working performance of the whole machine.



Fast Stripping Speed: The wire stripping machine features a pure copper motor with 370w high power that enables it to strip wire at a speed of approximately 65ft/min, which greatly increases your productivity.



Large Stripping Range: The wire stripping tool has 11 different sizes of wire holes. So you don't have to adjust the blade every time you choose a thicker or thinner one. It can meet the stripping requirements of 1.5mm-38mm/0.06-1.5in wire, so it has strong applicability.



Thoughtful Security Mechanism: The high stiffness and rigidity of the housing and the emergency stop button reduce the chances of accidents and guarantee safety during use.



Dual-use Design: This cable wire stripping machine comes with a handwheel disc for manual use. Therefore, it can be used easily even if the motor is faulty.



High Precision: It adopts a 45 gauge steel wire feed wheel and screw-type adjustment knife distance, which makes the wire stripping more accurate.



Transparent & Lightweight: The transparent panel makes it easier for you to observe and operate the machine. In addition, the lightweight aluminum alloy material makes the machine easy to carry.



Easy to Operate: The machine is simple in construction, all you need to do is select the correct inlet hole and slide the intact wire in, then turn on the switch. It can be easily operated even by beginners.



Details

Adjustable Nut: You can adjust the height of the blade to suit various cable sizes by simply turning the blade adjustment knob.



Hand Crank: The hand crank is designed to be very ergonomic and easy to turn.



Bottom Plate Fixing: There are bottom plate fixing holes at the bottom of the machine and corresponding fixing screws are provided in the package, so that the machine can be stably fixed on the desktop and not easy to slide.



High-speed Steel Blades: It uses finely ground high-speed steel blades, so it is not only very sharp but also wear-resistant, which further improves the working performance of the whole machine.



Application

It is suitable for scrap wire, single core wire, loose wire, round wire with sheath, etc of 1.5mm-38mm/0.06-1.5inch in diameter and is widely used in wiring harness processing, aerospace wire processing, audio and data line processing, wire recycling dismantling and other industries.



Specification

Model: YL-7124

Color: Blue

Material: Aluminum Alloy + Iron

Blade Material: High-Speed Steel

Wire Feed Wheel Material: 45 Gauge Steel

Surface Finish: Sprayed and Baked

Voltage: 220V/50-60Hz

Power: 370W

Current: 2.9A

Speed: 1400r/min

Channel of Cutters: 11

Cutting Blades: 10

Stripping Diameter: 1.5mm-38mm/0.06-1.5in

Stripping Speed: 65 ft/min, 20 m/min

Blade Thickness: 3 mm/0.12 in

Blade Diameter: 69mm/2.72in

Plug: UK Standard

Gross Weight: 26kg/57.32lbs

Net Weight: 24.5kg/54lbs

Product Size: 58*28*37cm/22.83*11.02*14.56inch

Package Size: 52*36*42.5cm/20.47*14.17*16.73inch



Package Included

1* Wire Stripper Machine

Other Accessories for Use



Notes

• It is recommended to remove the hand wheel when using it, as it will be safer.
• Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
