Electrical Connector, 6 Pcs 3 in 9 out Compact Conductor Connector, Cable Terminal Block Quick Spring Connector, With Mounting Screws
You may also like
Compare with similar items
Product information
Description

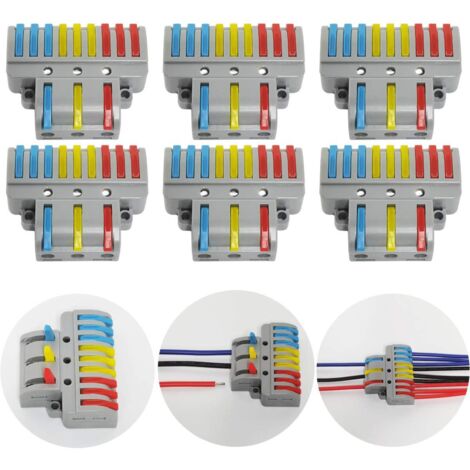

Practical - These 3-port to 9-port wire connectors are universal for both solid and stranded wires. You can use them to control multiple lights with one switch, 3 In 9 Out.
Material - This kit includes 6 compact wire connectors, made from the best flame-retardant insulating material, which offers a long lifespan, is corrosion-free, anti-aging, and resistant to 4KV pressure and electric shock.
Safety: Say goodbye to electrical tape, break with tradition, and make wiring faster and safer. Instead of traditional electrical tape and tangled butt connectors, this technological innovation reduces wiring time by 70%.
Widely Used: They are suitable for solid wires from 0.08 to 4 mm² / 28-12AWG and stranded wires from 0.08 to 2.5 mm² / 28-14AWG.
It is widely used in building wiring where space is limited for all necessary connections.Widely used: They are suitable for solid wires from 0.08 to 4 mm² / 28-12AWG and flexible wires from 0.08 to 2.5 mm² / 28-14AWG. It is widely used in building wiring where space is limited for all necessary connections.
Specifications:
Rated Voltage: 250 V/4 kV.
Rated Current: 32 A.
Rated Power: 7 kW.
Applicable Wire: 0.08-2.5 (4) mm² AWG28-14 (12).
Conductor Material: Electrolytic copper tin plating.
Tension Spring: High-alloy nickel-chromium steel.
Casing: Flame-retardant plastic.
Special Features:
Quick Plug and Play connection.
Integrated test point.
Maintenance-free connection.The maximum continuous operating temperature is 105°C.
Different wire thicknesses and types can be combined in a single connector.
Compact, reusable conductor connector.
Features
- BrandWOIYIC
- Voltage250 V
- ColourGrey
- Type of connectionAutomatic
- Terminal block useGeneral purpose
