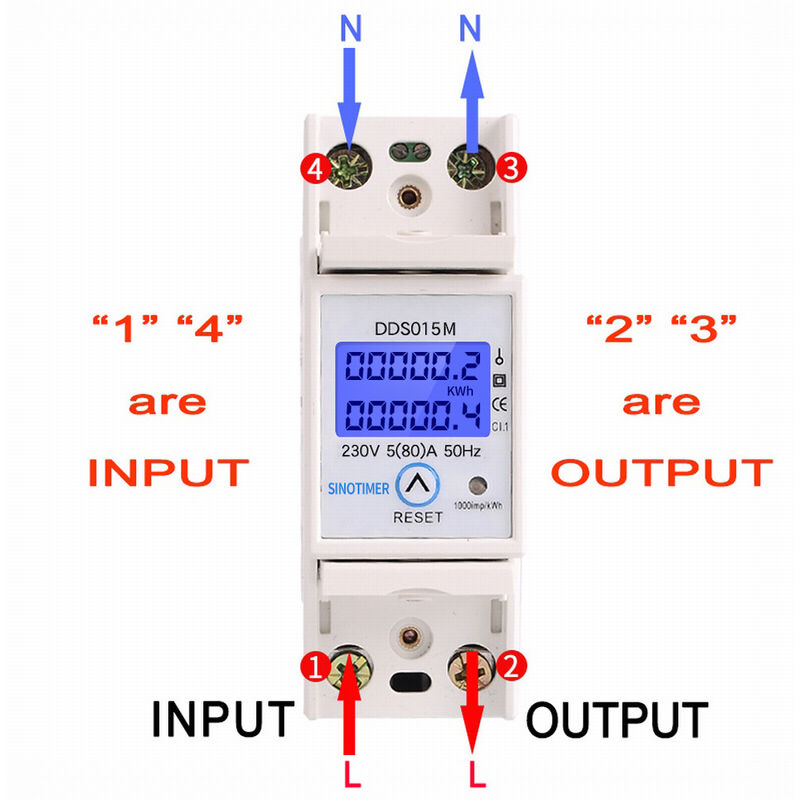

Energy meter, electricity meter, DDS015M digital display watt-hour meter, single-phase electric power meter, resettable, 230V

【New Product】 100% brand new, high-quality, straight watt-hour meter. After rigorous and comprehensive testing to ensure the best quality before shipment, it is safe to use.
【Multifunction】 The meter can display kWh/voltage/current/power/power factor/frequency via a carousel.
【Dual-Line Display】 Displays temporary and total energy consumption (temporary energy consumption can be reset, total energy consumption cannot be reset).
【Easy Installation】 The 35mm DIN rail makes installation easy.
【Widely Used】 The meter can be reset (for temporary energy metering only) and can be used in many situations.
Feature:
1. The meter can be reset (for temporary electrical energy measurement only).
2. It has a wide range of applications and can be used on various occasions.
3. Multifunctional, the instrument can display kWh/Voltage/Current/Power/Power Factor/Frequency.
4. Two-line display: temporary energy consumption and total energy consumption (temporary energy consumption can be reset, total energy consumption cannot be reset).
5. The 35 mm DIN rail is easy to install.
Specification:
Item Type: Watt-hour meter.
Rated Current: 5A
Maximum Current: 80A
Display Type: LCD
35 mm DIN rail mount.
Model: DDS015M
Accuracy Class: 1
Measuring Range: 0.0-99999.0 kWh
Power Supply: AC
Output Voltage: 230 VAC
Rated Voltage: 230 VAC
Phase: Single Phase
Pulse Frequency: 1000 imp/kWh
list Packaging:
1 power meter
