Energy meter, single-phase DIN rail 5-80A 220V 50Hz Electronic kWh meter with digital display with backlight LCD DDM15SD
You may also like
Compare with similar items
Product information
Description
Link to download the French manual: https://drive.google.com/file/d/1wCyOO9hMi609cu29CrmCYwtwli9M1nfJ/view
Functions:

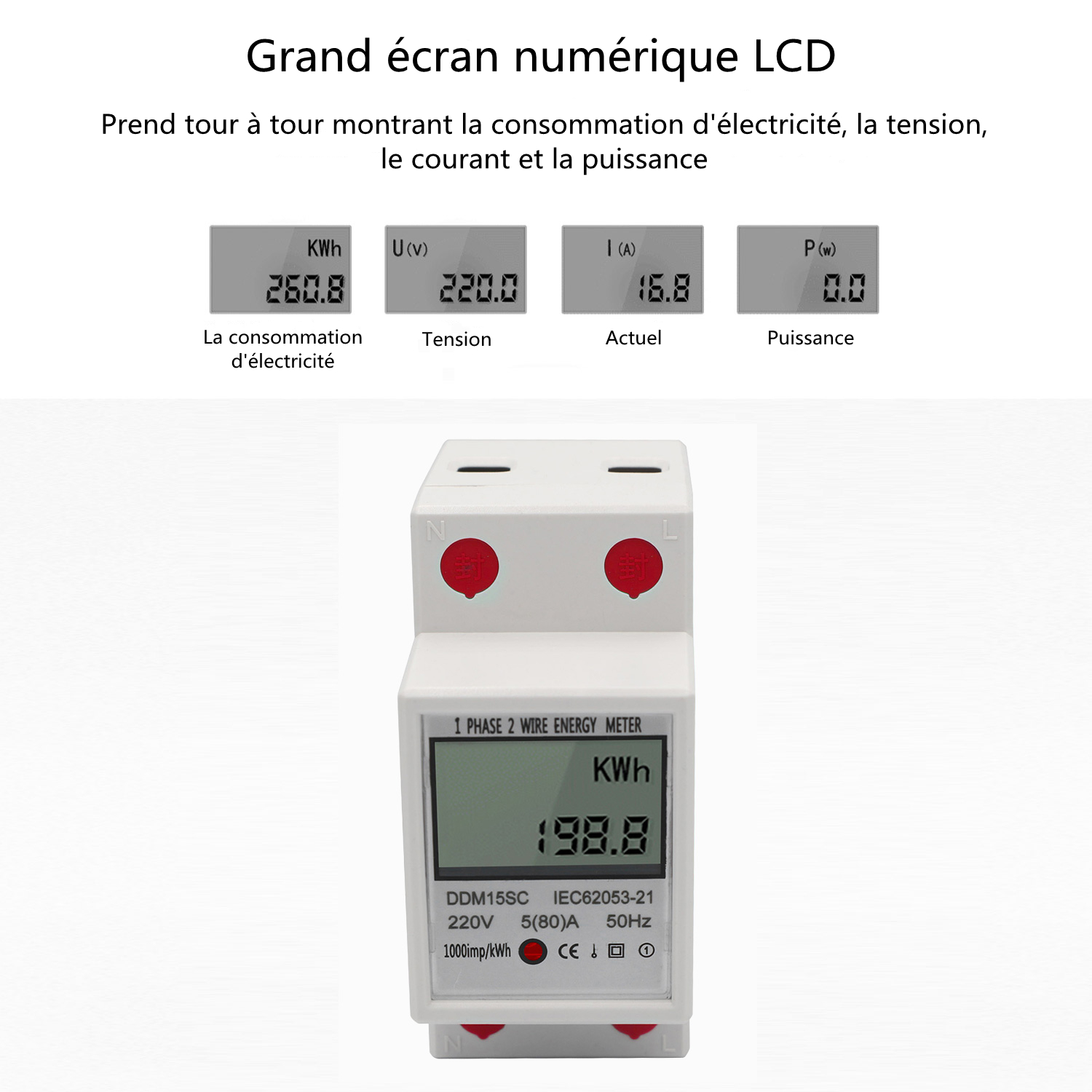

1. Energy meter with digital LCD display, shows electricity consumption, voltage, current, and power sequentially.
2. Voltage AC 220 V / 50 Hz, current 5 A–80 A, power 17000 W, pulse output 1000 imp/kWh and with pulse output indicator.
3. Mounting on 35 mm DIN rail; 17.5 mm pole width; Supports "top output" and "bottom input" / "top input" and "bottom output" wiring methods and is easy to install.
4. Use of microelectronics and digital processing technology for accurate and reliable measurement of electrical energy.
5. Large-area integrated circuits and precise SMT technology with good resistance to electromagnetic interference and stable performance.
Material: Plastic
Model: DDM15SC
Accuracy: First Year
Reference Voltage: 220 V / 50 Hz
Display: Digital LCD display
Mounting: 35 mm DIN rail
Post width: 17.5 mm
Power: 17000W
Ambient temperature: -20 ℃ ~ + 50 ℃
Features
- BrandOTHERS
- Amperage80 A
- Control functionNo
- Frequency50 Hertz
- Height10 cm
- Width3 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of phase(s)Single-phase
- Weight300 g
- Voltage230 V
- Meter typeElectricity
- ManoMano ReferenceME218177267
- MMID139318454048
- Product codeYS-KJ26-1316
- EAN8343923047403
