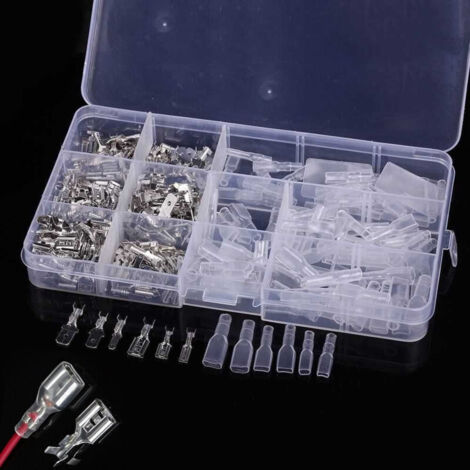

Eosnow 270-piece crimp terminal connector kit for electrical wires, male and female, assorted
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
General Description
The Eosnow kit includes 270 crimp terminal connectors for electrical wires, including assorted male and female connectors. This kit is designed for a variety of uses, including in household appliances, automobiles, and audio systems. The connectors are made of copper, offering excellent conductivity, and come in a sturdy reusable storage box.Technical Specifications
- Total Quantity: 270 pieces
- Connector Types: 2.8 mm, 4.8 mm, 6.3 mm
- Material: Copper
- Color: Silver + Transparent
- Package Weight: 134 g
- Package Size: 90 x 60 x 35 mm
- Wire Compatibility: 0.75-2.5 mm² (AWG 18-14) for the 4.8 mm and 6.3 mm types; 0.5-1.5 mm² (AWG 22-16) for the 2.8 mm type
- Inner diameter and thickness:
- Type 2.8 mm: inner diameter 2.8 mm, thickness 0.25 mm (male), 0.5 mm (female)
- Type 4.8 mm: inner diameter 4.8 mm, thickness 0.35 mm (male), 0.5 mm (female)
- Type 6.3 mm: inner diameter 6.3 mm, thickness 0.4 mm (male), 0.8 mm (female)
Package List
- 30 x 2.8 mm male connectors
- 30 x 4.8 mm male connectors
- 30 x 6.3 mm male connectors
- 30 x female connectors 2.8 mm
- 30 female connectors of 4.8 mm
- 30 female connectors of 6.3 mm
- 90 insulating sleeves for female connectors
Features
- BrandXISRENS
- Width10 mm
- Voltage1 V
- Amperage1 A
- MaterialLinden
