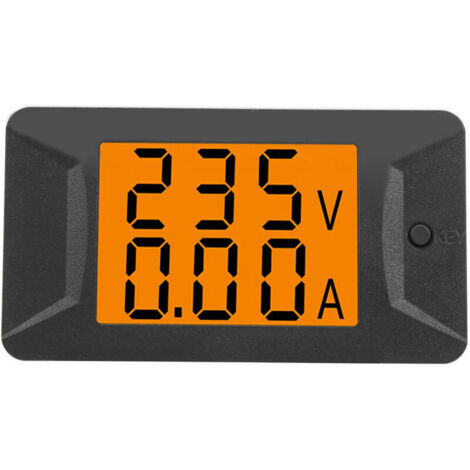

Eosnow PZEM-026 AC 40-400 V 100 A Dual Voltage Digital Ammeter Voltmeter 110-220 V
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
Features:
1. Dual digital display voltage and current meter, adopts an integrated installation, which is flexible and easy to install.2. Equipped with a wide-viewing-angle HTN LCD screen, which can directly display voltage and current.
3. It supports backlight control, which can be turned on or off by short taps, and can be used normally at night.
4. Non-contact current measurement, the measurement range is AC 0-100A, with high accuracy, safety, and reliability.
5. Primarily used in high and low voltage electrical distribution cabinets, display cases, photovoltaic inverters, assembly line testing, electronic maintenance, etc.
Specifications:
Condition: 100% Brand NewItem Type: Voltmeter
Material: ABS
Model: PZEM-026
Voltage Measurement Range: AC 40-400V
Display Format: When Accuracy: ±1%
Current Measurement Range: AC 0-100A
Display Format: At Start Current: 0.02A
Accuracy: ±1%
Error Adjustment:
The product has been calibrated to 100% before leaving the factory, and the user can manually adjust the error, as shown below:
Step 1: Press and hold the button (approximately 3 seconds) until the numbers on the screen begin to flash, then release the button.
Step 2: The flashing number indicates that it has entered the "error adjustment" state. The numbers flash cyclically in the sequence: high voltage-medium voltage-low voltage-decimal voltage-high current-medium current-low current-
The current decimal; The flashing indicates the current adjustable number. Briefly press the button to adjust the whole number (number cycle 0-9, decimal point shift).
Step 3: After setting, please press and hold the button (approximately 3 seconds); the screen will display. Display "PASS" and return to the normal interface, indicating that the setup was successful.
Package List:
Package includes: 1 x voltmeter1 x manual
Features
- BrandXISRENS
- Height1 cm
- Weight200 g
- Voltage1 V
- Amperage1 A
