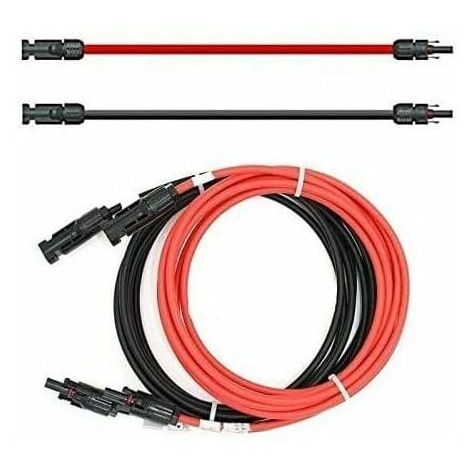

Extension cable - double sided - solar cable - red/black - 6 mm² - with mounted solar plug (2x 2m) MUMU

Name: Extension cable - double sided - solar cable - red/black - 6 mm² - with mounted solar plug (2x 2m) MUMU
Brand: MUMU
SKU: XHWD-M-XXW-3317
Price: 21.02 GBP
Availability: InStock

~~£30.03~~

Of which environmental contribution £0.01 including VAT.

Sold by Permu UK

Product information

Description

General description

These assembled solar cables are designed for connecting solar modules to the junction boxes of a generator or for creating an extension between solar modules. They are resistant to weather, UV radiation, and ozone, offering high flexibility and durability under mechanical loads. Each cable is equipped with a solar plug or a solar connection, and the delivery includes one red and one black cable.

Technical specifications

Conductor size: 6 mm²

Nominal voltage (Uo / U): AC 0.6 / 1.0 kV / DC 0.9 / 1.5 kV

Maximum permissible voltage: 1.8 kV

AC voltage test: AC 6.5 kV

Temperature range: -40 °C to 85 °C

Maximum conductor temperature: 120 °C

Short circuit resistance: up to 200 °C / 5 s

Thermal expansion test at 200 °C

Acid and alkali resistant

Halogen free

Usage

These cables are suitable for installation in both dry and humid environments, as well as outdoors, even in direct sunlight.

Features

Brand
MUMU
Length
200 cm
Width
12 cm
Electric cable length
2 m
Solar panel accessory type
